Hubbell Wiring Device - Kellems DR15LA

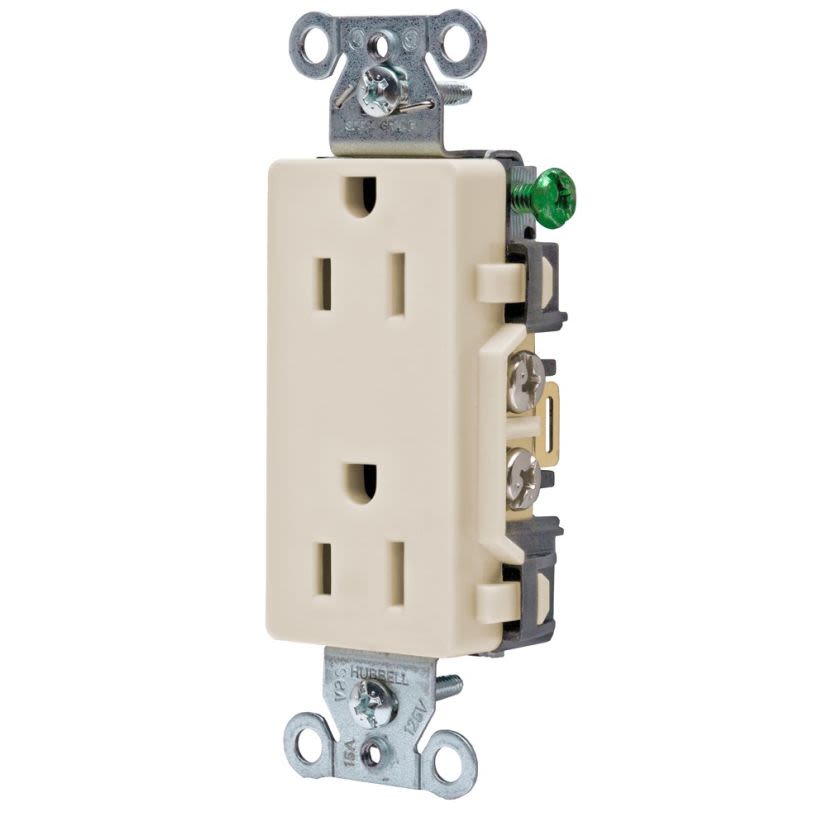

Hubbell Wiring Device-Kellems StyleLine DR15LA Decorator Duplex Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond
Hubbell Wiring Device - Kellems DR15LA
Hubbell Wiring Device-Kellems StyleLine DR15LA Decorator Duplex Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light AlmondNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DR15LA
Werner Part #3961931
UPC783585127859
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DR15LA
Werner Part #3961931
UPC783585127859
Product Description
Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Decorator Duplex Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Back/Side Wired Terminal, Nylon, Light Almond, 3.28 in H x 1.3 in W x 1.07 in D
Attributes
Documents
Features
Specifications
Attributes
ColorLight Almond
Country of OriginChina
Dimensions1.29 x 1.06 x 3.28 in
GradeCommercial/Industrial/Specification
Horsepower1/2 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wired
Type1-Phase Decorator Duplex Standard Screw Mount
Type / StyleDecorator Duplex Standard
Voltage Rating125 VAC
Features
Aesthetic Style Line® decorator designSmooth faceTriple wipe contacts
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA C22.2 No. 42|Federal Specification WC596|NEMA WD1/WD5|UL 498
