Hubbell Wiring Device - Kellems CSB420LA

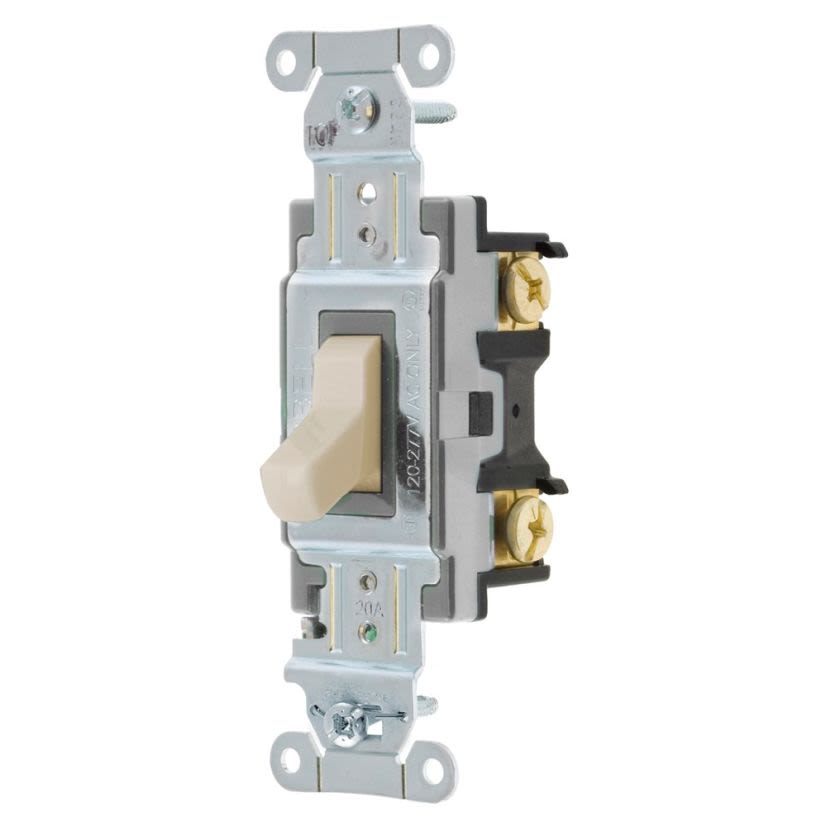

Hubbell Wiring Device-Kellems CSB420LA 4-Way 2-Position Specification/Commercial Grade Standard Toggle Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2-Position Contact
Hubbell Wiring Device - Kellems CSB420LA
Hubbell Wiring Device-Kellems CSB420LA 4-Way 2-Position Specification/Commercial Grade Standard Toggle Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2-Position ContactNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, CSB420LA, Toggle Switch, 4-Way 2-Position Specification/Commercial Grade Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 2 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Light Almond, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Actuator TypeToggle
ColorLight Almond
Country of OriginCN
Dimensions4.18 x 1.49 x 1.83 in
Electrical Ratings5540 W
ManufacturerHubbell
MaterialNylon
Mounting TypeThreaded
Number of Poles2
Package Height1.66 in
Package Length4.3 in
Package TypeEACH
Package Weight0.2 lb
Package Width1.9 in
Temperature Rating-40 to 75 deg C
Terminal TypeBack/Side Wire
Type4-Way 2-Position Specification/Commercial Grade Standard
Type / Style4-Way 2-Position Specification/Commercial Grade Standard
Voltage Rating120 to 277 V AC
Documents
Applications
General Purpose AC and Indoor Applications
Warranty
Limited
Features
- Abuse resistant nylon toggle
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|NEC Certified|Federal Specification WS896|NEMA WD1|UL 20
