Hubbell Wiring Device - Kellems BR15WHITR

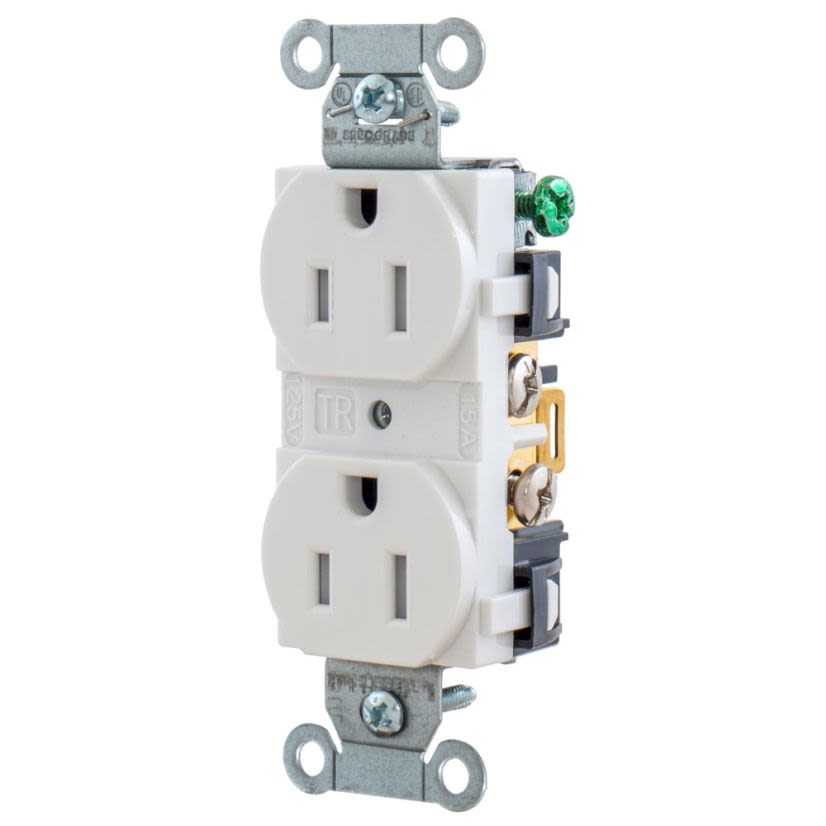

Hubbell Wiring Device-Kellems BR15WHITR 1-Phase Duplex Self-Grounding Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems BR15WHITR
Hubbell Wiring Device-Kellems BR15WHITR 1-Phase Duplex Self-Grounding Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, BR15WHITR, Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, White, 1.32 x 0.83 x 3.28 in Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginCN
Dimensions1.32 x 0.83 x 3.28 in
GradeCommercial/Specification
Horsepower1/2 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-15R
Number of Poles2
Number of Wires3
Package Height1.2 in
Package Length4.16 in
Package TypeEACH
Package Weight0.04 lb
Package Width1.56 in
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wired
Type1-Phase Duplex Self-Grounding Screw Mount
Type / StyleDuplex Self-Grounding
Voltage Rating125 V AC
Documents
Warranty
Limited
Features
- Tamper-resistant shutter
- Smooth face
- Wrap-around galvanized steel straps
- Triple wipe contacts
Specifications
Standards/Approvals: UL 498, File No. E2186 Listed, UL 94-V-2 Flammability Rating|CSA C22.2, No. 42| NEMA WD1/WD5/WD6 Compliant
