Crouse-Hinds series FSQC2390

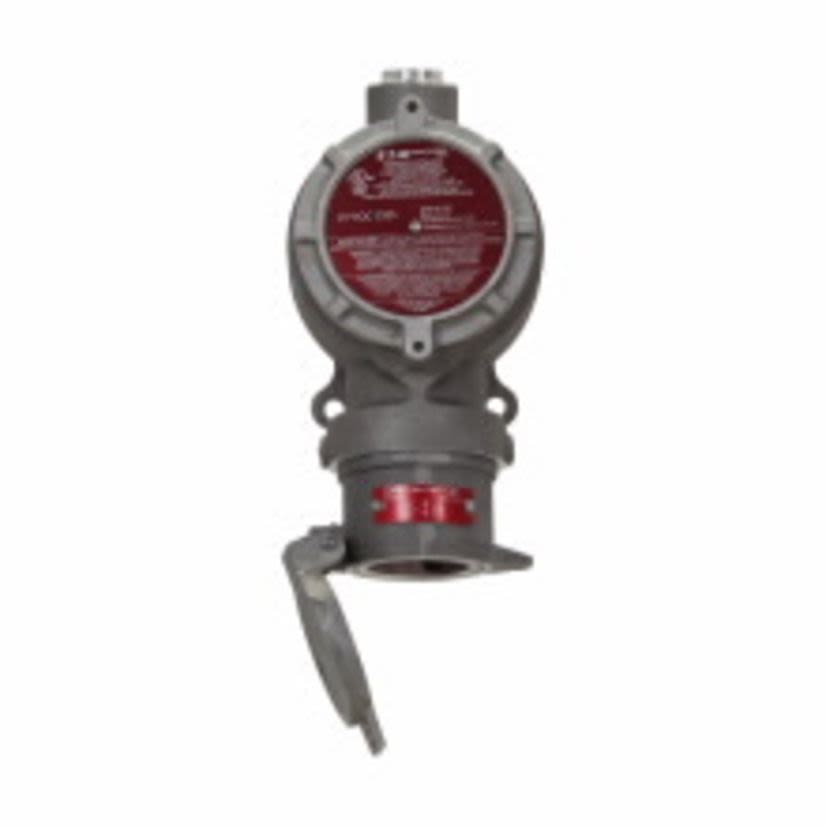

Crouse-Hinds Arktite FSQC2390 Dust-Ignitionproof Explosionproof Feed Through Raintight Interlocked Receptacle With Switch, 120/240/480/600 VAC, 30 A, 4 Poles, 3 Wires
Crouse-Hinds series FSQC2390
Crouse-Hinds Arktite FSQC2390 Dust-Ignitionproof Explosionproof Feed Through Raintight Interlocked Receptacle With Switch, 120/240/480/600 VAC, 30 A, 4 Poles, 3 WiresNon-stock product. Available to order - lead time may vary.
BrandCrouse-Hinds series
MFG #FSQC2390
Werner Part #4008573
UPC782274417325
Non-stock product. Available to order - lead time may vary.
BrandCrouse-Hinds series
MFG #FSQC2390
Werner Part #4008573
UPC782274417325
Product Description
Crouse-Hinds Arktite Interlocked Receptacle, Dust-Ignitionproof Explosionproof Feed Through Raintight, Series: FSQC, 120/240/480/600 VAC, 30 A, 2 hp, 4 Pole, 3 Wires, NEMA 3/7B/7C/7D/9F/9G/12 NEMA Rating, 0.39 to 1.2 in Diameter Cord, Copper-Free Aluminum, 10 in L x 5-3/4 in W Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
Country of OriginMX
Dimensions10 in L x 5-3/4 in W
Enclosure TypeNEMA 3/7B/7C/7D/9F/9G/12
Horsepower2 hp
ManufacturerEaton
MaterialCopper-Free Aluminum
NEMA RatingNEMA 3/7B/7C/7D/9F/9G/12
Number of Poles4
Number of Wires3
Package TypeEACH
Package Weight5.74 lb
SeriesFSQC
TypeDust-Ignitionproof Explosionproof Feed Through Raintight
Type / StyleDust Ignition Proof Explosionproof Raintight
Voltage Rating120/240/480/600 V AC
Documents
Applications
Industrial Facilities, Factories Facility, Power Distribution and Control, Portable Electrical Equipment such as Hand Lamps, Lighting Systems, Power Tools, Conveyors, Magnetic Motor Starters or Contactor Applications
Included
Spring Door Housing
Features
- Compatible with Arktite APJ aluminum and NPJ Krydon plugs
- Switch cannot be turned on until plug is fully inserted and rotated
- Plug cannot be withdrawn under load
- Cover cannot be removed when switch is on
- Satisfies OSHA lockout/tagout requirements
- Smallest mounting footprint for interlocks
- Copper-free aluminum enclosure, cover and spring door, Krydon insulator, brass contact material
- 2 hp at 120 VAC, 5 hp at 240 VAC, 7-1/2 hp at 480 VAC, 7-1/2 hp at 600 vac for 30 a 1 ph and 10 hp at 240 VAC, 25 hp at 480 VAC, 30 hp at 600 vac for 60 a 1 ph
- 3 hp at 120 VAC, 7.5 hp at 240 VAC, 15 hp at 480 VAC, 15 hp at 600 vac for 30 a 3 hp and 10 hp at 240 VAC, 25 hp at 480 VAC, 30 hp at 600 VAC, for 60 a 3 ph
- 3/4 in hub
- Interlocked receptacles are used to supply power to portable electrical equipment such as hand lamps, lighting systems, power tools, conveyors and welders
- In areas which are hazardous due to the presence of flammable vapors or gases and combustible dusts
- Dust ignitionproof, raintight
- 0.39 to 1.2 in, 0.55 to 0.7 in, 0.7 to 0.85 in Dia cable
Specifications
Standards/Approvals: Class I, Div 1, 2, Group B, C, D, Class I, Zone 1, Group IIB + Hydrogen, Class II, Div 1, 2, Group F, G, Class III, ANSI Specified|cUL Listed|UL 1010|CSA C22.2 No. 30/159|CEC Approved|NEC Compliant|OSHA Compliant
