Bussmann Series RM60200-1CR

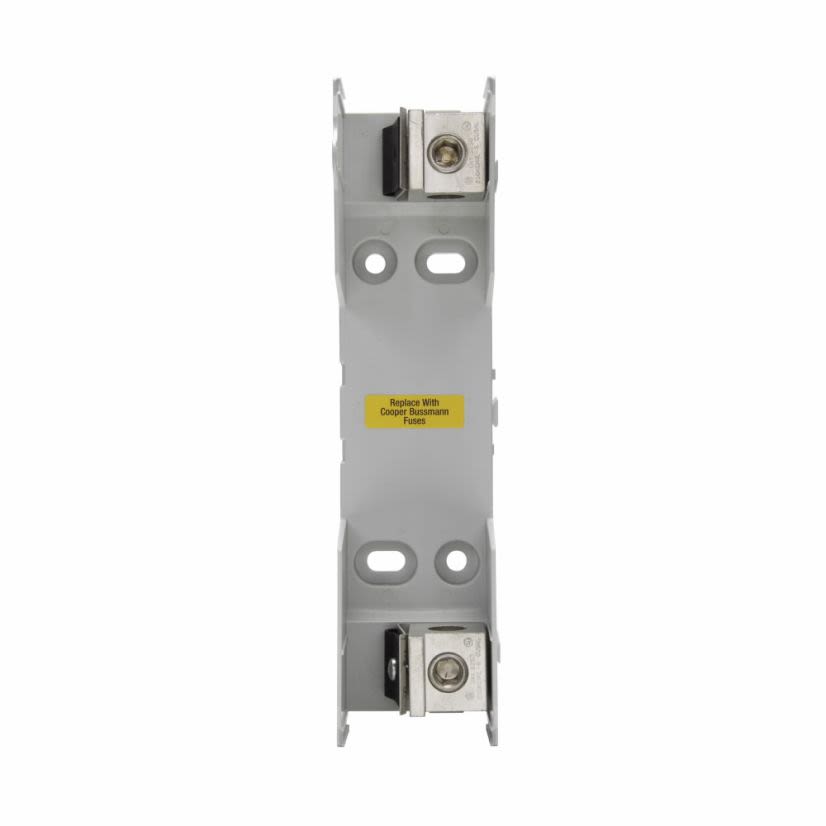

Edison RM60200-1CR RM600 Modular Knife Blade Fuse Block, 600 VAC, 200 A, R Class, 6 AWG to 250 kcmil Wire, 1 Pole
Bussmann Series RM60200-1CR
Edison RM60200-1CR RM600 Modular Knife Blade Fuse Block, 600 VAC, 200 A, R Class, 6 AWG to 250 kcmil Wire, 1 PoleNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #RM60200-1CR
Werner Part #3991896
UPC051712387361
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #RM60200-1CR
Werner Part #3991896
UPC051712387361
Product Description
Edison Fuse Block, Modular Knife Blade, Series: RM600, 600 VAC, 200 A, 1 Poles, Class: R, Fuse Holder Code: S, Box Lug, 6 AWG to 250 kcmil Wire, Panel Mount, 9.63 in Fuse Length, 1.84/1.66 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPS-RK-SP and LPS-RK-SPI, Fusetron FRS-R, Limitron KTS-R, KWS-R and PVS-R Fuse, Thermoplastic, 11.2 in L x 2.6 in W x 3.8 in H
Attributes
Documents
Applications
Features
Attributes
ClassR
Connection TypeBox Lug
Country of OriginMX
Dimensions11.2 in L x 2.6 in W x 3.8 in H
Fuse Diameter1.84/1.66 in
Fuse Holder CodeS
Fuse Length9.63 in
ManufacturerEaton
MaterialThermoplastic
Mounting TypePanel
Number of Poles1
Package Height3.74 in
Package Length1.5 in
Package TypeEACH
Package Weight0.9 lb
Package Width2.6 IN
SeriesRM600
Size of Wire6 AWG to 250 kcmil
Suitable For Use WithLow-Peak LPS-RK-SP and LPS-RK-SPI, Fusetron FRS-R, Limitron KTS-R, KWS-R and PVS-R Fuse
Temperature Rating-40 to 120 deg C
Type / StyleModular Knife Blade
Voltage Rating600 V AC
Applications
Electrical Assemblies, Panels, EOEMs, Critical Power, Factory Automation, Renewable Energy, HVAC, Building/Elevator Controls, Building Entrance and Process Industries Applications
Features
- Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A)
- Standard fuse clip reinforcing springs enhance electrical contact
- Blocks dovetail together to assemble required number of poles
- 1.84 in dia for Fusetron and Limitron, 1.66 in dia for Low-Peak fuses
