Bussmann Series RM25400-3CR

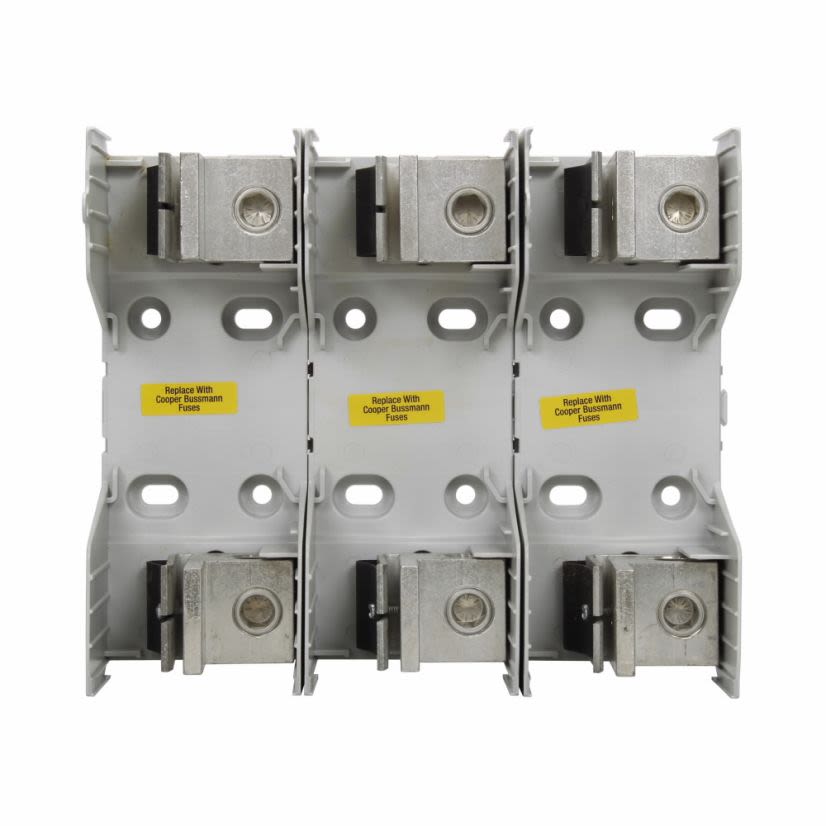

Edison RM25400-3CR Knife Blade Fuse Block, 250 VAC, 400 A, Class R, 3 Poles
Bussmann Series RM25400-3CR
Edison RM25400-3CR Knife Blade Fuse Block, 250 VAC, 400 A, Class R, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #RM25400-3CR
Werner Part #3997268
UPC051712386999
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #RM25400-3CR
Werner Part #3997268
UPC051712386999
Product Description
Edison Fuse Block, Knife Blade, Series: RM Series, 250 VAC, 400 A, 3 Poles, Class: R, Box Lug, -40 to 120 deg C, Thermoplastic, 10.1 in L x 10.9 in W x 4.8 in H
Attributes
Documents
Applications
Features
Attributes
ClassR
Connection TypeBox Lug
Country of OriginMX
Dimensions10.1 in L x 10.9 in W x 4.8 in H
ManufacturerEaton
MaterialThermoplastic
Number of Poles3
Package Height7.5 IN
Package Length13.5 in
Package Weight7.92 lb
Package Width11.5 in
SeriesRM Series
Temperature Rating-40 to 120 deg C
Type / StyleKnife Blade
Voltage Rating250 V AC
Applications
For electrical assemblies, panels and EOEMs applications
Features
- Integral dovetails allow assembly of multiple poles at point of use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Standard fuse clip reinforcing springs enhance electrical contact
