Bussmann Series RM25200-3CR

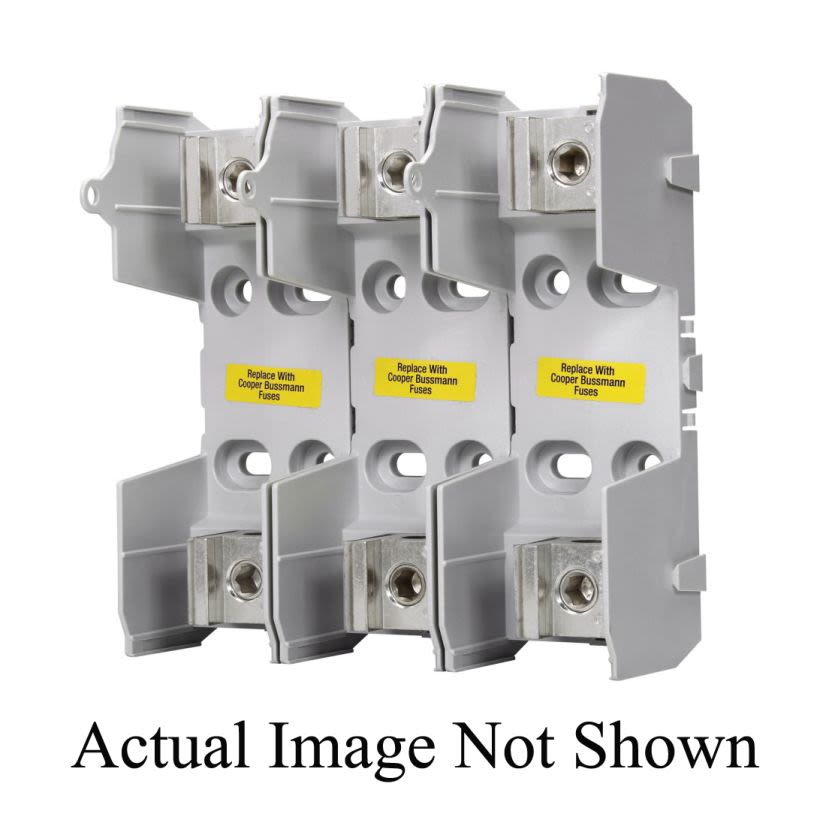

Edison RM25200-3CR RM250 Modular Knife Blade Fuse Block, 250 VAC, 200 A, R Class, 6 AWG to 250 kcmil Wire, 3 Poles
Bussmann Series RM25200-3CR
Edison RM25200-3CR RM250 Modular Knife Blade Fuse Block, 250 VAC, 200 A, R Class, 6 AWG to 250 kcmil Wire, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #RM25200-3CR
Werner Part #4018030
UPC051712387354
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #RM25200-3CR
Werner Part #4018030
UPC051712387354
Product Description
Edison Fuse Block, Modular Knife Blade, Series: RM250, 250 VAC, 200 A, 3 Poles, Class: R, Fuse Holder Code: M, Box Lug, 6 AWG to 250 kcmil Wire, Panel Mount, 7.13 in Fuse Length, 1.56/1.66 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPN-RK-SP and LPN-RK-SPI, Fusetron FRN-R, Limitron KTN-R Fuse, Thermoplastic, 8.7 in L x 8 in W x 3.8 in H
Attributes
Documents
Applications
Features
Attributes
ClassR
Connection TypeBox Lug
Country of OriginMX
Dimensions8.7 in L x 8 in W x 3.8 in H
Fuse Diameter1.56/1.66 in
Fuse Holder CodeM
Fuse Length7.13 in
ManufacturerEaton
MaterialThermoplastic
Mounting TypePanel
Number of Poles3
Package Height3.73 in
Package Length8 in
Package Weight3.36 lb
Package Width8 in
SeriesRM250
Size of Wire6 AWG to 250 kcmil
Suitable For Use WithLow-Peak LPN-RK-SP and LPN-RK-SPI, Fusetron FRN-R, Limitron KTN-R Fuse
Temperature Rating-40 to 120 deg C
Type / StyleModular Knife Blade
Voltage Rating250 V AC
Documents
Applications
Electrical Assemblies, Panels, EOEMs, Critical Power, Factory Automation, Renewable Energy, HVAC, Building/Elevator Controls, Building Entrance and Process Industries Applications
Features
- Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A)
- Standard fuse clip reinforcing springs enhance electrical contact
- Blocks dovetail together to assemble required number of poles
- 1.56 in dia for Fusetron and Limitron, 1.66 in dia for Low-Peak fuses
