Bussmann Series MV155F2DCX150E

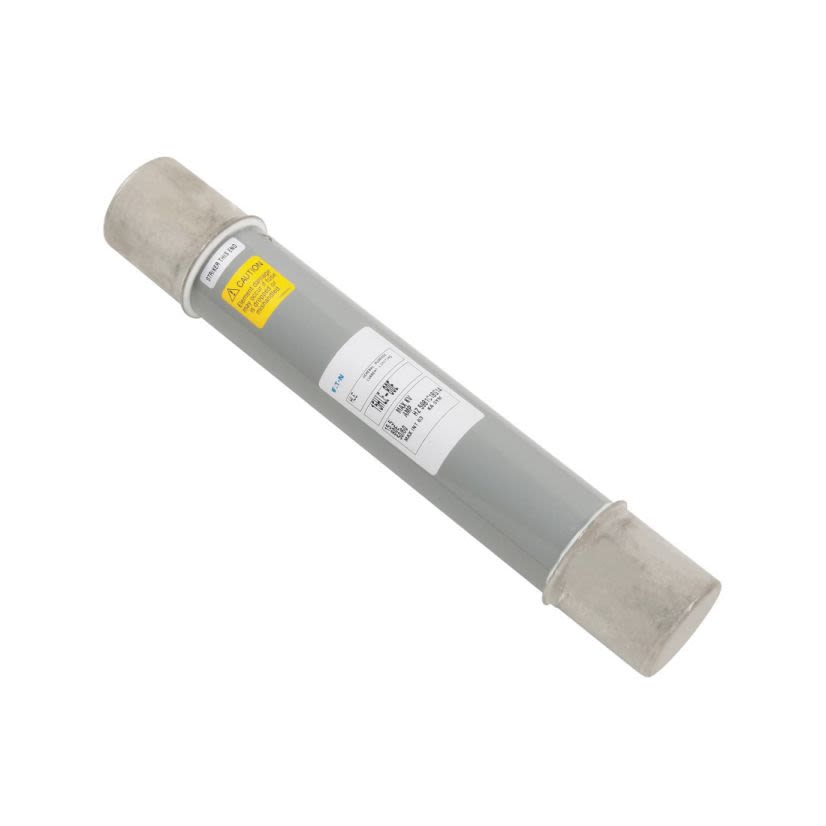

Edison MV155F2DCX150E Current Limiting Double Barrel Medium Voltage Fuse, 150E A, 15.5 kV, 50 kA, Class E
Bussmann Series MV155F2DCX150E
Edison MV155F2DCX150E Current Limiting Double Barrel Medium Voltage Fuse, 150E A, 15.5 kV, 50 kA, Class ENon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #MV155F2DCX150E
Werner Part #657252
UPC051712552875
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #MV155F2DCX150E
Werner Part #657252
UPC051712552875
Product Description
Edison Medium Voltage Fuse, Current Limiting Double Barrel, Series: MV155, Indicating/Non-Indicating: Non-Indicating, 150E A, 15.5 kV, 50 kA Interrupt, Class: E, Ferrule Terminal, Clip Mount, Fiberglass, 3 in Dia x 21-3/4 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size3 in Dia x 21-3/4 in L
Body TypeTube
ClassE
Country of OriginMX
ElementSilver Ribbon
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating50 kA
ManufacturerEaton
MaterialFiberglass
Package Height5 in
Package Length24.3 in
Package Weight23.65 lb
Package Width8 in
SeriesMV155
Terminal TypeFerrule
Type / StyleCurrent Limiting Double Barrel
Voltage Rating15.5 kV
Documents
Applications
Primary Transformer, Feeder Circuit Protection, Voltage Switches and Metal-Enclosed Switchgear Applications
Features
- Standard clip center distance of 15 and 18 in with 2 and 3 in barrel diameters for retrofitting in existing hardware
- Open fuse indicator for ease in troubleshooting
- Double pulsed at 90% of minimum I2t to establish manufacturing reliability
