Bussmann Series JM60400-3MW26

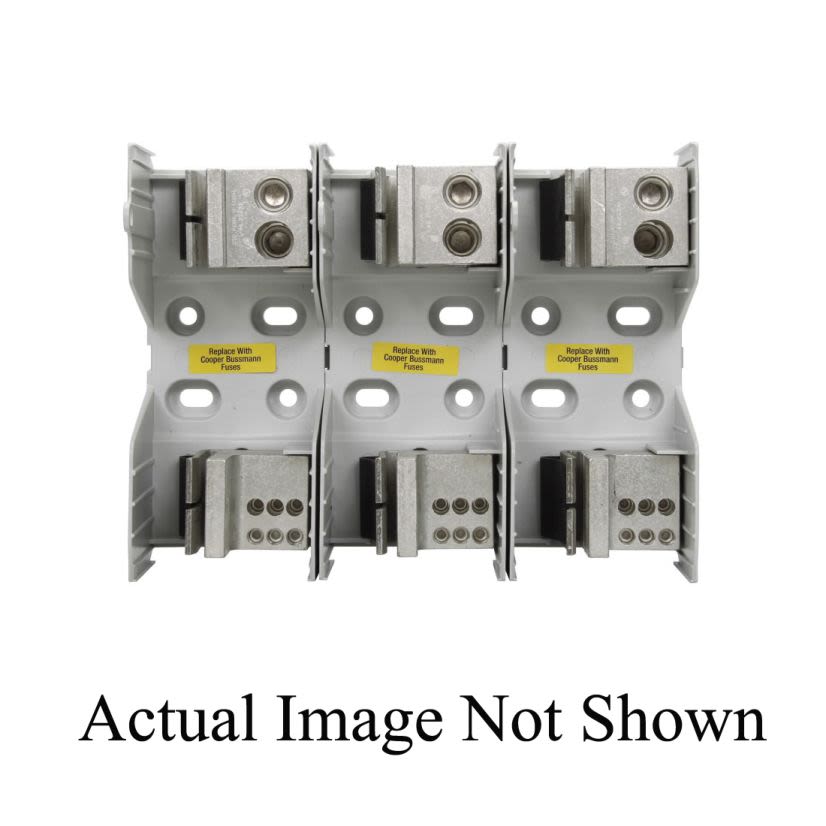

Edison JM60400-3MW26 JM600 Fuse Block, 600 VAC, 225 to 400 A, J Class, 6 AWG to 350 kcmil Wire, 3 Poles
Bussmann Series JM60400-3MW26
Edison JM60400-3MW26 JM600 Fuse Block, 600 VAC, 225 to 400 A, J Class, 6 AWG to 350 kcmil Wire, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #JM60400-3MW26
Werner Part #4021570
UPC051712491181
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #JM60400-3MW26
Werner Part #4021570
UPC051712491181
Product Description
Edison Fuse Block, Series: JM600, 600 VAC, 225 to 400 A, 3 Poles, Class: J, Lug, 6 AWG to 350 kcmil Wire, Panel Mount, 7.13 in Fuse Length, 2 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPJ, Limitron JKS and DFJ Knife Blade Fuse, Thermoplastic, Gray, 8 in L x 10.6 in W x 4.8 in H
Attributes
Documents
Applications
Features
Attributes
ClassJ
ColorGray
Connection TypeLug
Country of OriginMX
Dimensions8 in L x 10.6 in W x 4.8 in H
Fuse Diameter2 in
Fuse Length7.13 in
ManufacturerEaton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles3
Package Height12 in
Package Length9 in
Package TypeEACH
Package Weight7.78 lb
Package Width6.75 in
SeriesJM600
Size of Wire(1) 1 AWG to 350 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu, 8 to 2 AWG Al, (12) 14 to 8 AWG Cu, 8 AWG Al Load
Suitable For Use WithLow-Peak LPJ, Limitron JKS and DFJ Knife Blade Fuse
Temperature Rating-40 to 120 deg C
Type / StyleFuse Block
Voltage Rating600 V AC
Documents
Applications
Electrical Assemblies, Panels and EOEMs Applications
Features
- Combination power distribution block and fuse block reduces wire connections and total panel components, using up to 57% less panel space and reducing installation time and labor by an average of 33 percent when compared with traditional fuse block/power distribution block solutions
- A 200 kA withstand rating helps achieve a higher assembly short circuit current rating (SCCR) for compliance with NEC sections 110.10, 409.110(4), 409.22, 440.4(B), 670.3(A)(4) and 670.5
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for tool less assembly of multiple poles at point of use
- Panel mount versatility allows one product to be used for multiple applications without incurring additional inventory cost
- Design uses fewer wire connections, reducing watts loss and overall operating temperature of the panel
- (2) 6 AWG to 350 kcmil for line side copper/aluminum, (6) 14 to 2 AWG copper, 8 to 2 AWG aluminum, (12) 14 to 8 AWG copper, 8 AWG aluminum for load side wire
