Bussmann Series 16204-3

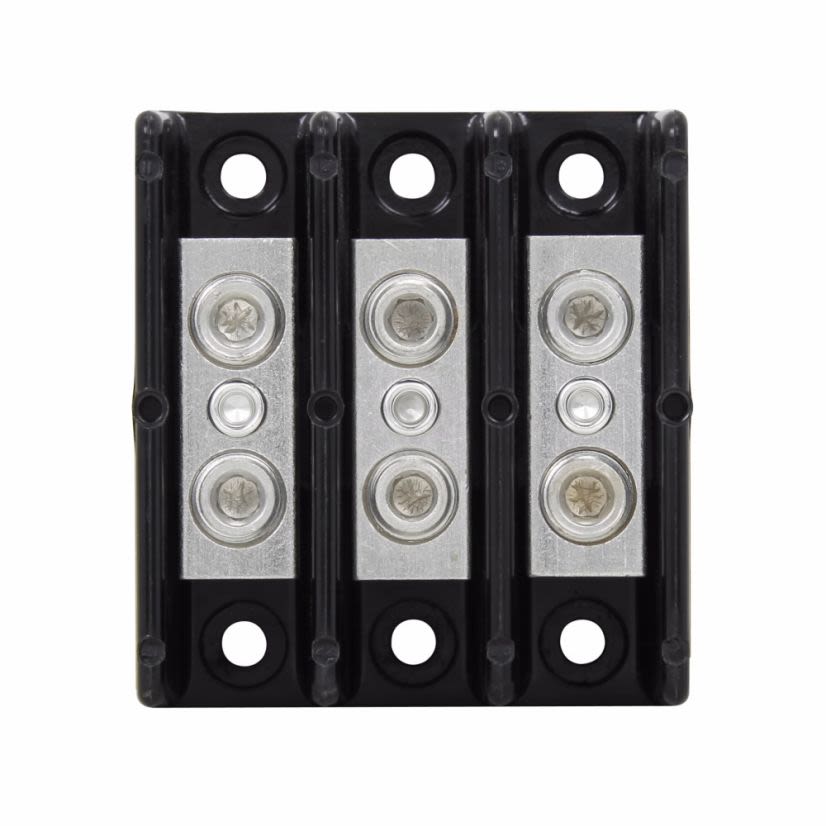

Edison Magnum 16204-3 Barrier/Splicer Power Terminal Block, 600 V AC/DC, 175 A, 3 Poles, 8 to 2/0 AWG Wire, Thermoplastic
Edison Magnum 16204-3 Barrier/Splicer Power Terminal Block, 600 V AC/DC, 175 A, 3 Poles, 8 to 2/0 AWG Wire, Thermoplastic

Bussmann Series 16204-3

Edison Magnum 16204-3 Barrier/Splicer Power Terminal Block, 600 V AC/DC, 175 A, 3 Poles, 8 to 2/0 AWG Wire, Thermoplastic
Non-stock product. Available to order - lead time may vary.

BrandBussmann Series

MFG #16204-3

Werner Part #642270

UPC051712148658

Non-stock product. Available to order - lead time may vary.

BrandBussmann Series

MFG #16204-3

Werner Part #642270

UPC051712148658

Product Description

Edison Magnum Power Terminal Block, Barrier/Splicer, Series: 162, 600 V AC/DC, 175 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 8 to 2/0 AWG Wire, 200 kA Short Circuit, Thermoplastic, Tin Plated, Black, 2.7 in L x 2.88 in W x 1.75 in H Dimensions
Attributes
ColorBlack
Country of OriginMexico
Dimensions2.7 in L x 2.88 in W x 1.75 in H
Enclosure TypeType 4X/IP69K
FinishTin Plated
Horsepower50 hp
ManufacturerEaton
MaterialThermoplastic
Mounting TypeThreaded
Number of Poles3
Package TypeEACH
Phase3 ph
Primary Connection/Pole1
Secondary Connection/Pole1
Series162
Short Circuit Current Rating200 kA
Size of Wire8 to 2/0 AWG
Temperature Rating-40 deg C
Terminal TypeScrew
TypeBarrier/Splicer
Type / StyleBarrier/Splicer
Voltage600 VAC/VDC
