Southwire 20508821

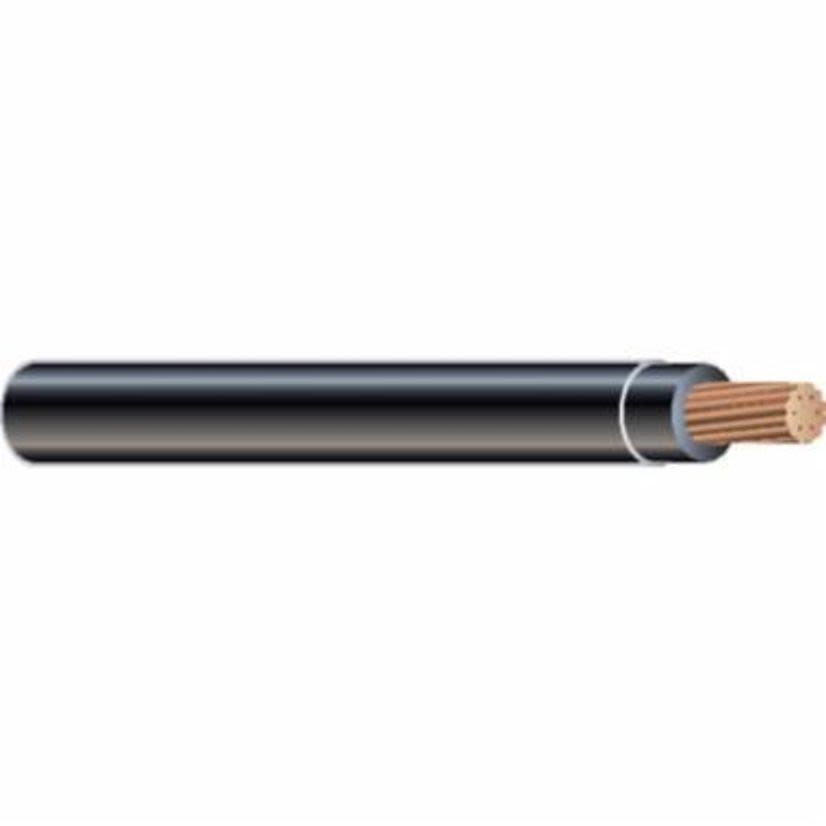

Southwire SIMpull 20508821 THHN Building Wire, 600 V AC, 4/0 AWG Copper Conductor, 5000 ft L, Black
Southwire 20508821
Southwire SIMpull 20508821 THHN Building Wire, 600 V AC, 4/0 AWG Copper Conductor, 5000 ft L, BlackIn Stock: 21672more info
|
BrandSouthwire
MFG #20508821
Werner Part #65826
UPC032886234187
In Stock: 21672more info
|
BrandSouthwire
MFG #20508821
Werner Part #65826
UPC032886234187
Product Description
Southwire SIMpull Building Wire, THHN, 600 V AC, 260 A, Copper Conductor, 4/0 AWG Conductor, 0.624 in OD, 5000 ft Length, 19 Strands, Thermoplastic Insulation, PVC Jacket, Black Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size4/0 AWG
Conductor TypeCopper
Country of OriginUS
Insulation MaterialThermoplastic
Jacket ColorBlack
Jacket MaterialPVC
ManufacturerSouthwire Company
Number of Conductors1
Outside Diameter0.624 in
Package Height40.56 in
Package Length45.56 in
Package TypeEACH
Package Weight1.56 lb
Package Width45.56 in
Strands19
Temperature Rating90 deg C
TypeTHHN
Voltage Rating600 V AC
Applications
Used in conduit and cable trays for services, feeders, branch circuits in commercial or industrial applications
Warranty
1 Year
Features
- THWN-2- Wet or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil
Specifications
Standards/Approvals: ASTM B3/B8/B787|CSA C22.2 No. 75|cULus Listed|Federal Specification A-A-59544|National Electrical Code|NEMA WC-70 (ICEA S-95-658)|NFPA 70|RoHS Compliant|UL 83/1063/1581
