Lumark XTOR8B-W

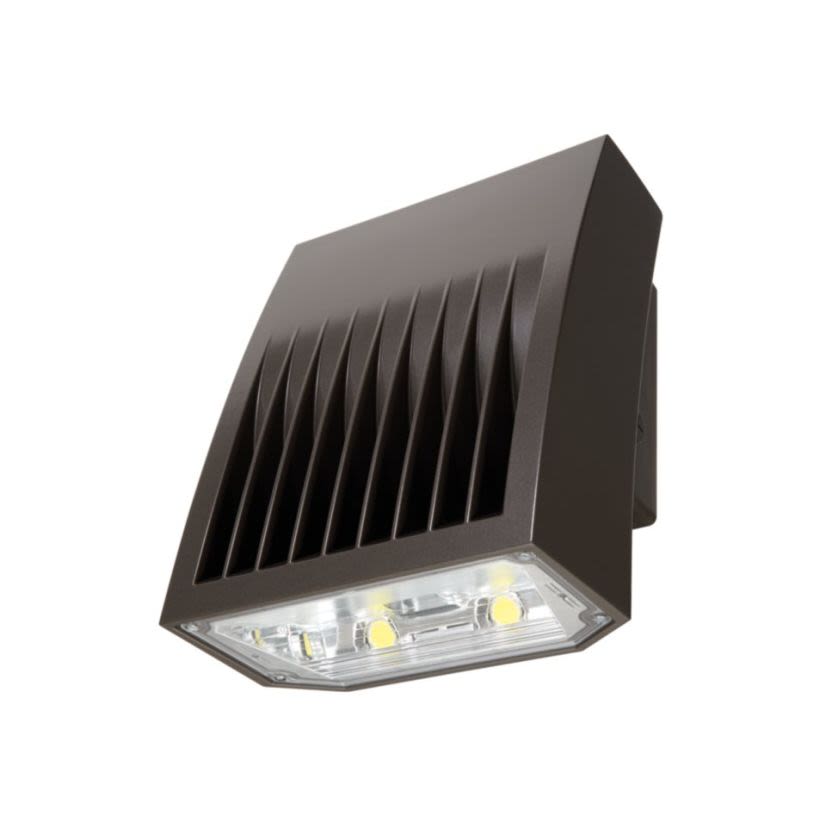

Lumark Outdoor Crosstour MAXX XTOR8B-W Outdoor Wallpack, LED Lamp, 81 W Fixture, 120 to 277 V AC, Carbon Bronze Housing
Lumark XTOR8B-W
Lumark Outdoor Crosstour MAXX XTOR8B-W Outdoor Wallpack, LED Lamp, 81 W Fixture, 120 to 277 V AC, Carbon Bronze HousingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Lumark Outdoor Crosstour MAXX Outdoor Wallpack, Series: XTOR8B, 120 to 277 V AC, 81 W Fixture, 0.31/0.35/0.39/0.71 A, LED Lamp, 72000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 70 CRI, 0 to 10 VDC Dimming LED Ballast, Full Cut-Off Lens, 8373 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Carbon Bronze Housing Finish, 9 in L x 7-3/4 in W x 13-1/4 in H Dimensions
Attributes
Documents
Applications
Features
Included
Warranty
Attributes
Average Life72000 hr
Ballast Type0 to 10 VDC Dimming LED
Color Rendering Index (CRI)70
Color Temperature4000 K
Country of OriginMX
Dimensions9 in L x 7-3/4 in W x 13-1/4 in H
Enclosure TypeIP66
Fixture Wattage81 W
Housing FinishCarbon Bronze
Housing MaterialDie Cast Aluminum
Lamp Base TypeMedium
Lamp TypeLED
Lamp Wattage150 W
Lens TypeFull Cut-Off
Light ColorNeutral White
Lumen8373 Lumens
ManufacturerCooper Lighting Solutions
Number of Lamps1
Package Height12.63 in
Package Length9.44 in
Package TypeEACH
Package Weight11.45 lb
Package Width6.81 in
SeriesXTOR8B
TypeArts and Crafts/Mission
Voltage Rating120 to 277 V AC
Documents
Applications
For wall, surface, inverted mount for facade, canopy illumination, perimeter and site lighting, pedestrian walkways, building entrances, multi-use facilities, industrial facilities, perimeter parking areas, storage facilities, institutions, schools, loading docks and wet locations
Features
- Wall, inverted or pole mount
- Patented heavy duty construction, maximum LED performance
- Die cast aluminum, low profile design with hinged removable door
- Emergency egress battery pack
- Sealed LED optical chamber
- 0.71 A at 120 VAC, 0.39 A at 208 VAC, 0.35 A at 240 VAC, 0.31 A at 277 VAC
Included
Lamp
Warranty
5 years
