Lithonia Lighting PT3 MV

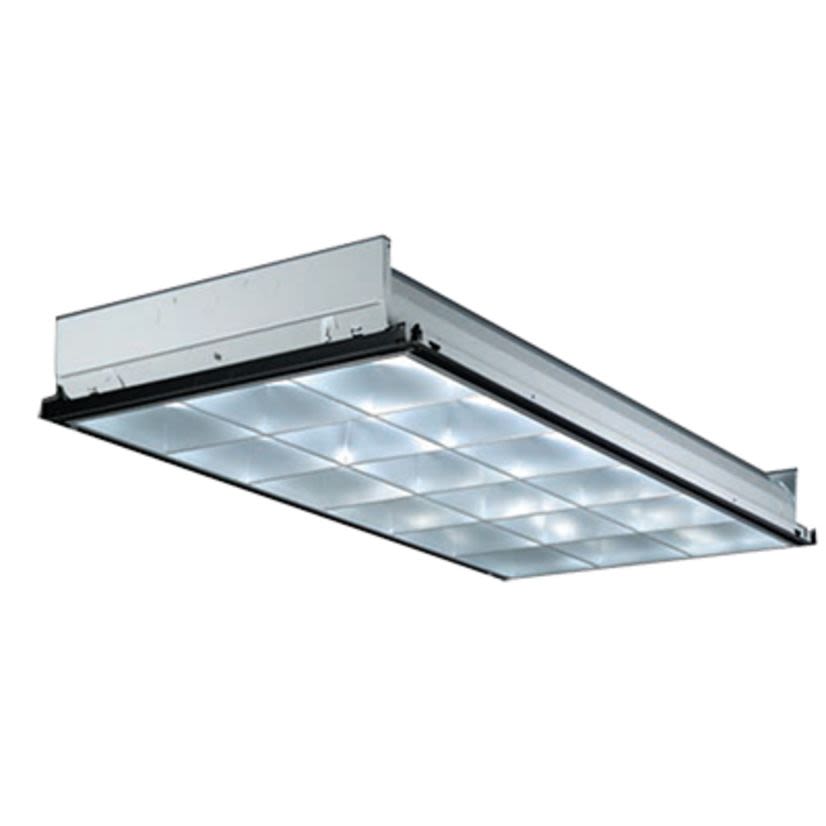

Lithonia Lighting Contractor Select PT3 MV Multi-Volt Parabolic Troffer, (3) T8 Lamp, 96 W Fixture, 120 to 277 VAC, Steel Housing
Lithonia Lighting PT3 MV
Lithonia Lighting Contractor Select PT3 MV Multi-Volt Parabolic Troffer, (3) T8 Lamp, 96 W Fixture, 120 to 277 VAC, Steel HousingNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #PT3 MV
Werner Part #3877750
UPC745975079155
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #PT3 MV
Werner Part #3877750
UPC745975079155
Product Description
Lithonia Lighting Contractor Select Parabolic Troffer, Multi-Volt, Series: PT3, 120 to 277 VAC, 96 W Fixture, T8 Lamp, 32 W Lamp, 3 Lamps, White Light, Electronic Ballast, 2850 Lumens, Ceiling Mounting, Steel Housing Material, 48 in L x 24 in W x 4-1/2 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
Average Life100000 hr
Ballast TypeElectronic
Color Rendering Index (CRI)71
Color Temperature4000 K
Country of OriginMX
Dimensions48 in L x 24 in W x 4-1/2 in D
Enclosure TypeIP66
Fixture Wattage96 W
Housing FinishBronze/Polyester Powder Coated
Housing MaterialSteel
Lamp TypeT8
Lamp Wattage32 W
Lens TypeTempered Glass
Light ColorWhite
Lumen2850 Lumens
ManufacturerAcuity Brands
Mounting TypePole
Number of Lamps3
SeriesPT3
TypeMulti-Volt
Type / StyleMulti-Volt
Voltage Rating120 to 277 V AC
Documents
Applications
Classroom, Hospital, Open Office and Retail Applications
Features
- Designed for use in open area applications where optical control, visual comfort and light cut-off are important
- Aluminum louvers utilize the latest developments in louver finishing for minimized louver iridescence
- Black reveal provides floating louver appearance, conceals optional air supply slots
- Square corner end plates improve strength and durability
- Integral T-bar safety clips hold fixture to T-bar securely, no fasteners required
- Heavy gauge hinges die-formed for maximum strength, spring action latches concealed in black reveal
- Five-stage iron-phosphate pre-treatment ensures superior paint adhesion
- Full light output, reduced energy
- Less than 10% total harmonic distortion multi-volt operation
- Louver formed from anodized aluminum
- Painted parts finished with high gloss, baked white enamel
- 18 number of cells
