Lithonia Lighting OLW 23 M2

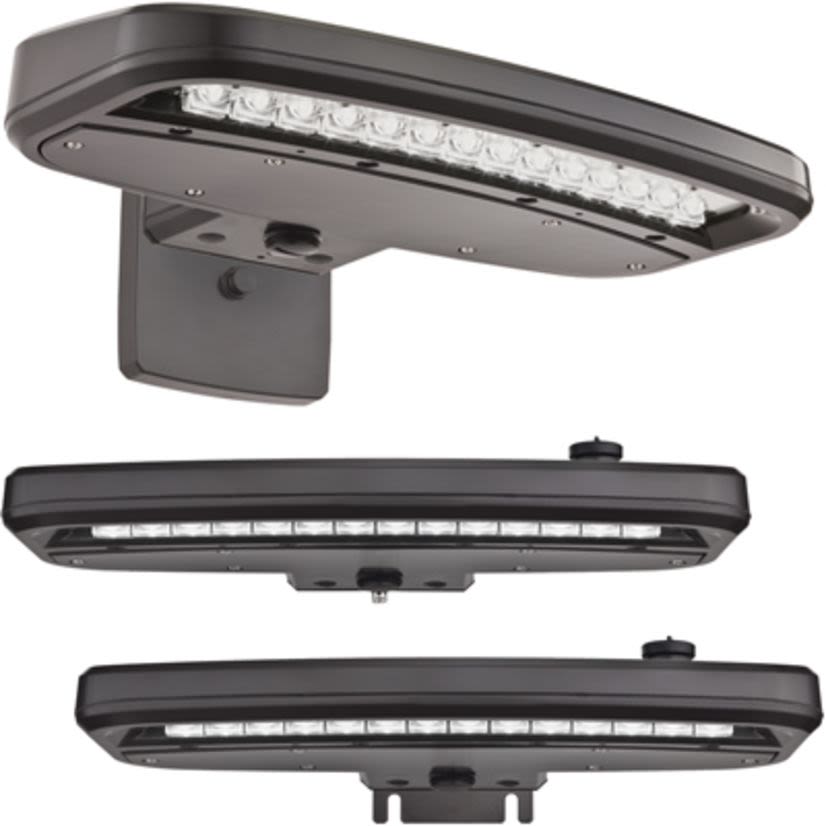

Lithonia Lighting OLW 23 M2 Outdoor Wallpack, LED Lamp, 35 W Fixture, 120 to 277 VAC, Bronze Housing
Lithonia Lighting OLW 23 M2
Lithonia Lighting OLW 23 M2 Outdoor Wallpack, LED Lamp, 35 W Fixture, 120 to 277 VAC, Bronze HousingNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #OLW 23 M2
Werner Part #3978460
UPC784231814574
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #OLW 23 M2
Werner Part #3978460
UPC784231814574
Product Description
Lithonia Lighting Outdoor Wallpack, Series: OLW, 120 to 277 VAC, 35 W Fixture, LED Lamp, 100000 hr Average Life, 5000 K Color Temperature, 69 CRI, Acrylic Lens, 2720 Lumens, Surface Mounting, Aluminum Housing Material, Bronze Housing Finish, 2-5/8 in H x 14-7/8 in W x 9-7/8 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Average Life100000 hr
Ballast TypeClass 2/Constant Current
Color Rendering Index (CRI)69
Color Temperature5000 K
Country of OriginCN
Dimensions2-5/8 in H x 14-7/8 in W x 9-7/8 in D
Enclosure TypeNEMA 7H x 6V/IP65
Fixture Wattage35 W
Housing FinishBronze
Housing MaterialAluminum
Lamp TypeLED
Lamp Wattage150 W
Lens TypeAcrylic
Light ColorNeutral White
Lumen2720 Lumens
ManufacturerAcuity Brands
Mounting TypeSlip Fitter
SeriesOLW
TypeStandard
Voltage Rating120 to 277 V AC
Documents
Applications
For lighting building facades, parking areas, walkways, garages, loading areas and any other outdoor space requiring reliable security lighting
Warranty
5 Years Limited
Features
- Provides maintenance free general illumination for outdoor use in residential and commercial applications such as retail, education, multi-unit housing and storage
- Sturdy weather resistant aluminum housing with a dark bronze finish
- Adjustable dusk to dawn photocell automatically turns light on at dusk and off at dawn for convenience and energy savings
- The photocell can be disabled with one turn-on its cover
- High performance, long lasting LEDs provide 100000 hr average life making the fixtures virtually maintenance-free
- Precision molded acrylic lenses provide type 3 distribution perfect for illuminating walkways, commercial driveways and other locations where uniform light is needed with fewer fixtures than traditional sources
- Nighttime Friendly full cutoff above 90 deg angle, standard
- OMA 18 DDB U 18 in steel mounting arm order separately
- There are no user serviceable parts
- Back housing easily mounts to any recessed junction box
- With all electronics in upper housing the open lower section makes wiring easy
- Mount on any vertical surface
- Not recommended in applications where a sprayed stream of water can come in direct contact with polycarbonate lens
- Photoelectric cell, button type control
- Die-cat aluminum housing
- The OLW family of LED wall packs combine high performance LEDs, highly engineered optics and sleek, contemporary designs to bring you the most advanced line of wall packs on the market
- Multiple lumen packages mean there is an OLW that is just right for your lighting needs
- The OLW family provides an efficient, maintenance free solution for lighting building facades, parking areas, exit doorways, walkways, garages and other outdoor spaces requiring added safety and security
