Woodhead CS81W64

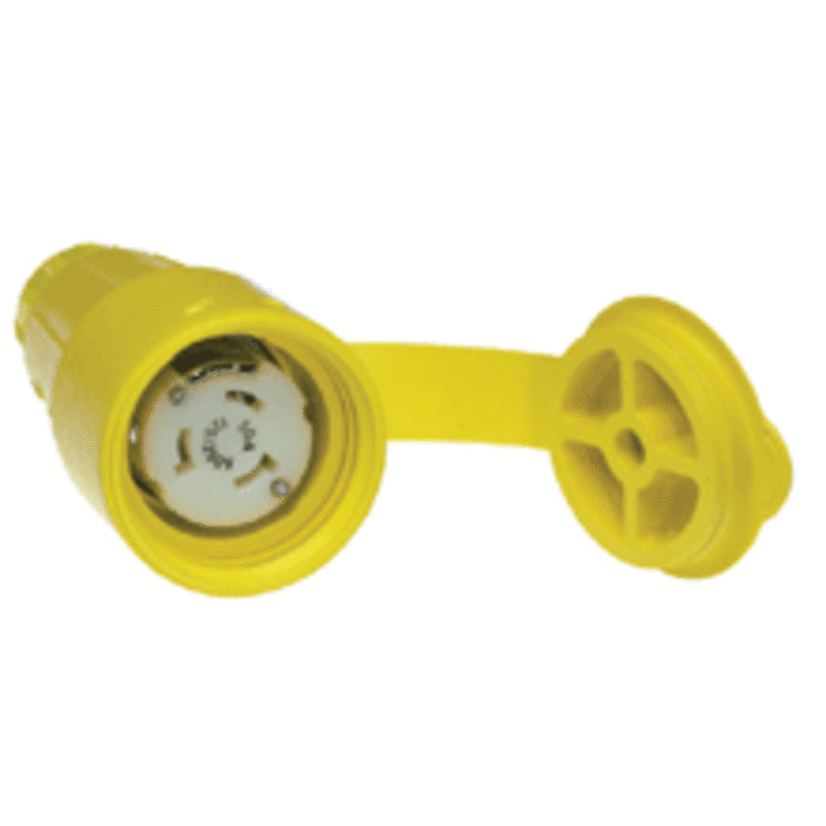

Woodhead Watertite CS81W64 130155 Female Connector With California Style Locking Blade, 480 V AC, 50 A, 3 Poles, 4 Wires, Yellow
Woodhead CS81W64
Woodhead Watertite CS81W64 130155 Female Connector With California Style Locking Blade, 480 V AC, 50 A, 3 Poles, 4 Wires, YellowNon-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #CS81W64
Werner Part #190258
UPC786788014742
Non-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #CS81W64
Werner Part #190258
UPC786788014742
Product Description
Woodhead Watertite Female Connector, Series: 130155, 480 V AC, 50 A, 3 Pole, 4 Wires, NEMA 1/3/4/4X/5/6/6P/12 Rating, IP67 Enclosure, -40 to 75 deg C, Yellow
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Country of OriginMX
Enclosure TypeIP67
ManufacturerMolex
NEMA RatingNEMA 1/3/4/4X/5/6/6P/12
Number of Poles3
Number of Wires4
Package TypePIECE
Package Weight1.5 lb
Return & Cancellation PolicyNonreturnable/Noncancellable
Series130155
Temperature Rating-40 to 75 deg C
Type / StyleConnector
Voltage Rating480 V AC
Documents
Features
- Single receptacle
- 3-phase configuration
- Multiple seal connector interface keeps out contaminants; resists vapor and water from high pressure wash down upto 1000psi
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- Nickel plated brass plug blades and connector contacts
- NEoTEX paracril OZO rubber outer housing and grommet
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- F5 body 1-1/4 in cord grip
- Non-NEMA locking
Specifications
Standards/Approvals: CSA File No. LR6837|RoHS Compliant|UL File No. E10176
