Woodhead 28W81

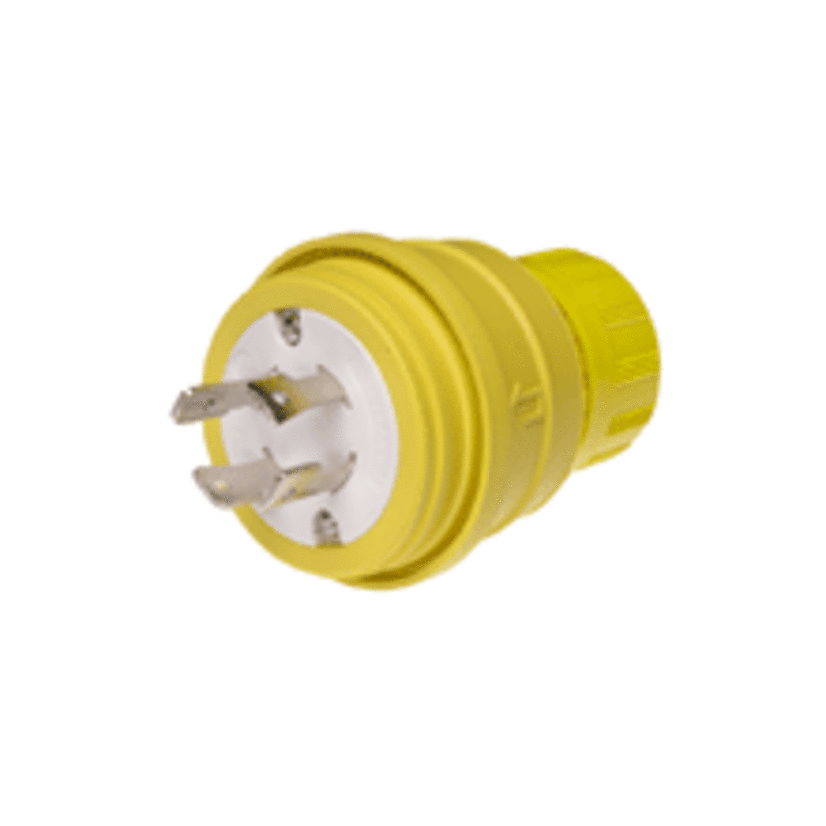

Woodhead Watertite 28W81 130147 3-Phase Male Plug With Locking Blade, 208 V AC, 30 A, 4 Poles, 5 Wires, Yellow
Woodhead 28W81
Woodhead Watertite 28W81 130147 3-Phase Male Plug With Locking Blade, 208 V AC, 30 A, 4 Poles, 5 Wires, YellowNon-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #28W81
Werner Part #3833111
UPC786788711139
Non-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #28W81
Werner Part #3833111
UPC786788711139
Product Description
Woodhead Watertite Plug, 3-Phase Male, Series: 130147, 208 V AC, 30 A, 4 Pole, 5 Wires, L21-30 NEMA Rating, IP67 Enclosure, 1 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorYellow
Country of OriginMX
Enclosure TypeIP67
ManufacturerMolex
MaterialRubber
NEMA RatingL21-30
Number of Poles4
Number of Wires5
Package TypePIECE
Package Weight1 lb
Return & Cancellation PolicyNonreturnable/Noncancellable
Series130147
Temperature Rating-40 to 75 deg C
Terminal TypeScrew/Wire
Type3-Phase Male
Type / StyleMale
Voltage Rating208 V AC
Documents
Applications
Breweries, Dairies, Food and Beverage, Wastewater Treatment, Water Treatment and Wet Location Application
Features
- Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seal cord without damaging the cord
- Nickel plated brass plug blade and connector contact
- NEoTEX paracril OZO rubber outer housing and grommet
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- F4 1 in cord grip body size
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Lexan receptacle cover plate and closure cap
Specifications
Standards/Approvals: UL Listed|CSA Certified|RoHS Compliant
