Woodhead 24W07

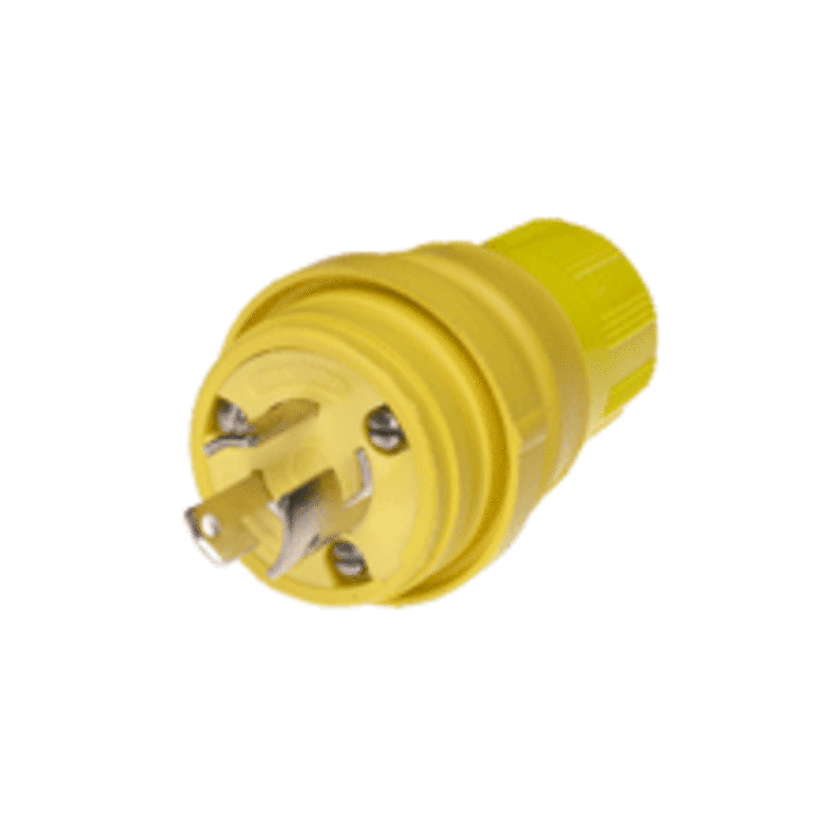

Woodhead Watertite Extreme 24W07 130146 Male Locking Plug With Locking Blade, 250 V AC, 15 A, 3 Poles, 3 Wires, Yellow
Woodhead 24W07
Woodhead Watertite Extreme 24W07 130146 Male Locking Plug With Locking Blade, 250 V AC, 15 A, 3 Poles, 3 Wires, YellowNon-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #24W07
Werner Part #68234
UPC786788712808
Non-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #24W07
Werner Part #68234
UPC786788712808
Product Description
Woodhead Watertite Extreme Locking Plug, Male, Series: 130146, 250 V AC, 15 A, 3 Pole, 3 Wires, IP67/IP69K Enclosure, 1/2 in Cord Dia, -40 to 75 deg C, Screw/Wire Terminal, Silicone, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorYellow
Country of OriginMX
Enclosure TypeIP67/IP69K
ManufacturerMolex
MaterialSilicone
Number of Poles3
Number of Wires3
Package TypePIECE
Return & Cancellation PolicyNonreturnable/Noncancellable
Series130146
Temperature Rating-40 to 75 deg C
Terminal TypeScrew/Wire
TypeMale
Type / StyleMale
Voltage Rating250 V AC
Documents
Applications
Breweries, Dairies, Food and Beverage, Wastewater Treatment and Wet Location Applications
Features
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screws pre-set in open position ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screwdrivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 3-piece strain relief seals cord without damaging the cord
- Nickel plated brass plug blades and connector contacts
- NEoTEX paracril OZO rubber outer housing and grommet
- Stainless steel face screws
- Nylon face insert
- Brass wire saddle clamp
- F2 body 1/2 in cord grip
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Lexan receptacle cover plate and closure caps
- Non-Nema configuration
Specifications
Standards/Approvals: CSA Certified|UL Listed
