Toshiba 0104XDSB42A-P

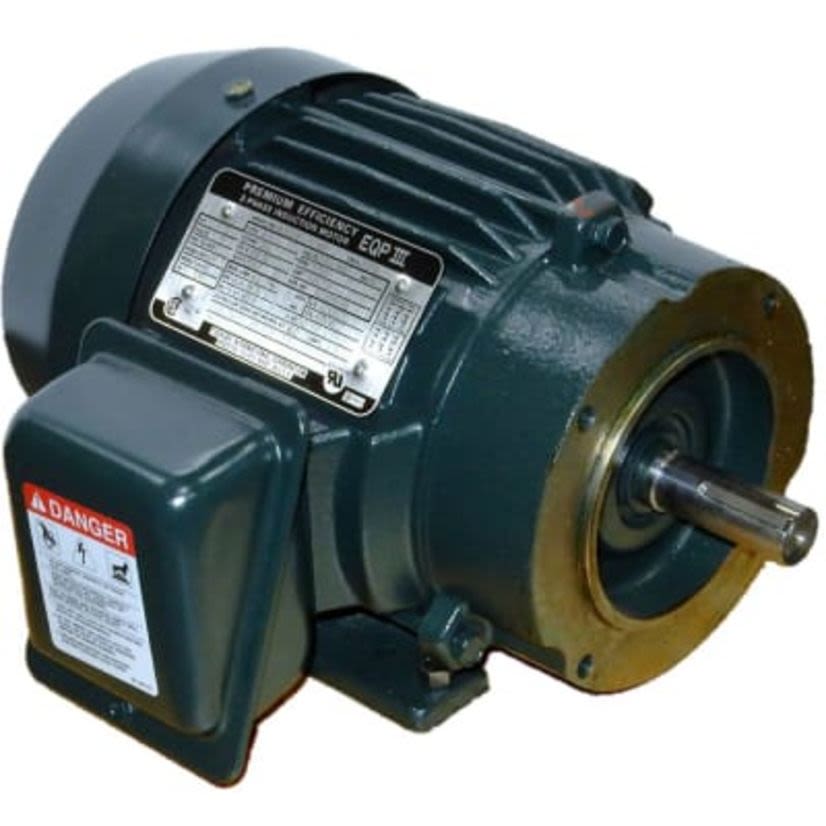

Toshiba EQP Global 0104XDSB42A-P 841 Continuous-Duty Type IKH AC Motor, TEFC Enclosure, 10 hp, 460 V AC, 60 Hz, 3 ph, 215TC Frame, 1800 rpm Speed, C-Face Footed Mount
Toshiba EQP Global 0104XDSB42A-P 841 Continuous-Duty Type IKH AC Motor, TEFC Enclosure, 10 hp, 460 V AC, 60 Hz, 3 ph, 215TC Frame, 1800 rpm Speed, C-Face Footed Mount

Toshiba 0104XDSB42A-P

Toshiba EQP Global 0104XDSB42A-P 841 Continuous-Duty Type IKH AC Motor, TEFC Enclosure, 10 hp, 460 V AC, 60 Hz, 3 ph, 215TC Frame, 1800 rpm Speed, C-Face Footed Mount
Non-stock product. Available to order - lead time may vary.

BrandToshiba

MFG #0104XDSB42A-P

Werner Part #3913949

Non-stock product. Available to order - lead time may vary.

BrandToshiba

MFG #0104XDSB42A-P

Werner Part #3913949

Product Description

Toshiba EQP Global AC Motor, Continuous-Duty Type IKH, Series: 841, General Purpose AC Motors, Compressor Motors, Fan & Blower Motors Application, 10 hp, 460 V AC, 13 A, 60 Hz Frequency, 3 ph, 1800 rpm Speed, TEFC Enclosure, 215TC Frame, 1-3/8 in Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 29.8 ft-lb Torque, C-Face Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 60:1 Variable Torque Speed, 19.4 in L x 13.2 in H Dimensions
Attributes
Application TypeGeneral Purpose AC Motors, Compressor Motors, Fan & Blower Motors
Bearing TypeBall
Constant Torque Speed Range20:1
Country of OriginUS
Dimensions19.4 in L x 13.2 in H
Enclosure TypeTEFC
Frame215TC
Frequency Rating60 Hz
Horsepower10 hp
Insulation ClassClass F
ManufacturerToshiba
MaterialCast Iron
Mounting TypeC-Face Footed
Package Weight218 lb
Phase3
RotationCW/CCW
Series841
Service Factor1.15
Shaft Size1-3/8 in
Speed1800 rpm
Temperature Rating40 deg C
Torque Rating29.8 ft-lb
TypeContinuous-Duty Type IKH
Type / StyleSKU
Variable Torque Speed Range60:1
Voltage Rating460 V AC
