Toshiba 0102XSSB41A-P

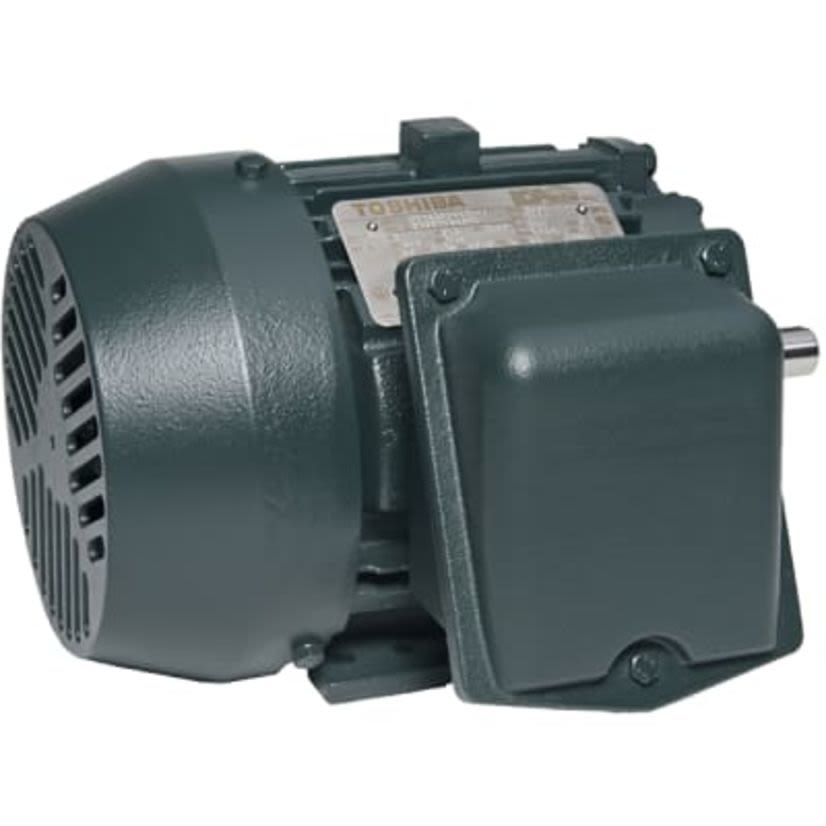

Toshiba EQP Global 0102XSSB41A-P 840 Continuous-Duty Type IKH AC Motor, TEFC Enclosure, 10 hp, 460 V AC, 60 Hz, 3 ph, 215T Frame, 3600 rpm Speed, Footed Mount
Toshiba EQP Global 0102XSSB41A-P 840 Continuous-Duty Type IKH AC Motor, TEFC Enclosure, 10 hp, 460 V AC, 60 Hz, 3 ph, 215T Frame, 3600 rpm Speed, Footed Mount

Toshiba 0102XSSB41A-P

Toshiba EQP Global 0102XSSB41A-P 840 Continuous-Duty Type IKH AC Motor, TEFC Enclosure, 10 hp, 460 V AC, 60 Hz, 3 ph, 215T Frame, 3600 rpm Speed, Footed Mount
Non-stock product. Available to order - lead time may vary.

BrandToshiba

MFG #0102XSSB41A-P

Werner Part #3917980

Non-stock product. Available to order - lead time may vary.

BrandToshiba

MFG #0102XSSB41A-P

Werner Part #3917980

Product Description

Toshiba EQP Global AC Motor, Continuous-Duty Type IKH, Series: 840, General Purpose AC Motors, Compressor Motors, Fan & Blower Motors Application, 10 hp, 460 V AC, 11.8 A, 60 Hz Frequency, 3 ph, 3600 rpm Speed, TEFC Enclosure, 215T Frame, 1-3/8 in Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 15 ft-lb Torque, Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 60:1 Variable Torque Speed, 19.4 in L x 13.2 in H Dimensions
Attributes
Application TypeGeneral Purpose AC Motors, Compressor Motors, Fan & Blower Motors
Bearing TypeBall
Constant Torque Speed Range20:1
Country of OriginUS
Dimensions19.4 in L x 13.2 in H
Enclosure TypeTEFC
Frame215T
Frequency Rating60 Hz
Horsepower10 hp
Insulation ClassClass F
ManufacturerToshiba
MaterialCast Iron
Mounting TypeFooted
Phase3
RotationCW/CCW
Series840
Service Factor1.15
Shaft Size1-3/8 in
Speed3600 rpm
Temperature Rating40 deg C
Torque Rating15 ft-lb
TypeContinuous-Duty Type IKH
Type / StyleSKU
Variable Torque Speed Range60:1
Voltage Rating460 V AC
