TE Connectivity HVT-Z-82-G/SG

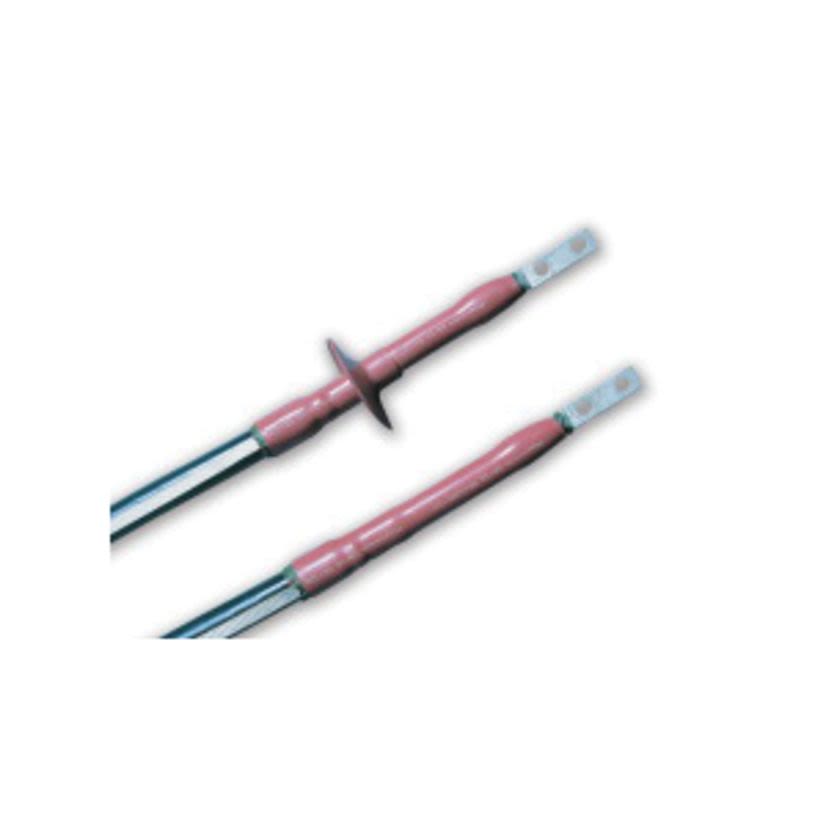

TE Connectivity HVT-Z-82-G/SG Heat Shrink TE Connectivityrmination Kit, 8 kV, 0.575 to 0.813 in Cable, 250 to 500 kcmil Conductor, Plastic
TE Connectivity HVT-Z-82-G/SG
TE Connectivity HVT-Z-82-G/SG Heat Shrink TE Connectivityrmination Kit, 8 kV, 0.575 to 0.813 in Cable, 250 to 500 kcmil Conductor, PlasticNon-stock product. Available to order - lead time may vary.
BrandTE Connectivity
MFG #HVT-Z-82-G/SG
Werner Part #1421117
UPC045686040810
Non-stock product. Available to order - lead time may vary.
BrandTE Connectivity
MFG #HVT-Z-82-G/SG
Werner Part #1421117
UPC045686040810
Product Description
TE Connectivity Heat Shrink TE Connectivityrmination Kit, Series: HVT, 8 kV, 0.575 to 0.813 in Cable Dia, 250 to 500 kcmil Conductor, 0.8 to 1.25 in, Plastic
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size250 to 500 kcmil
Country of OriginDE
ManufacturerTE Connectivity
MaterialPlastic
SeriesHVT
Type / StyleHeat Shrink TE Kit
Voltage Rating8 kV
Documents
Applications
For copper tape, wire shield, lead sheath and UniShield cables, indoor/outdoor applications
Features
- Heat shrink technology
- Built-in stress control
- These are range taking mechanical connectors that will accommodate a conductor range from #2 compact to 1000 kcmil stranded, class B
- 1-1/2 in OD sheath
- 11-1/2 in L installation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS 2011/65/EU|ELV Compliant|IEEE 48
