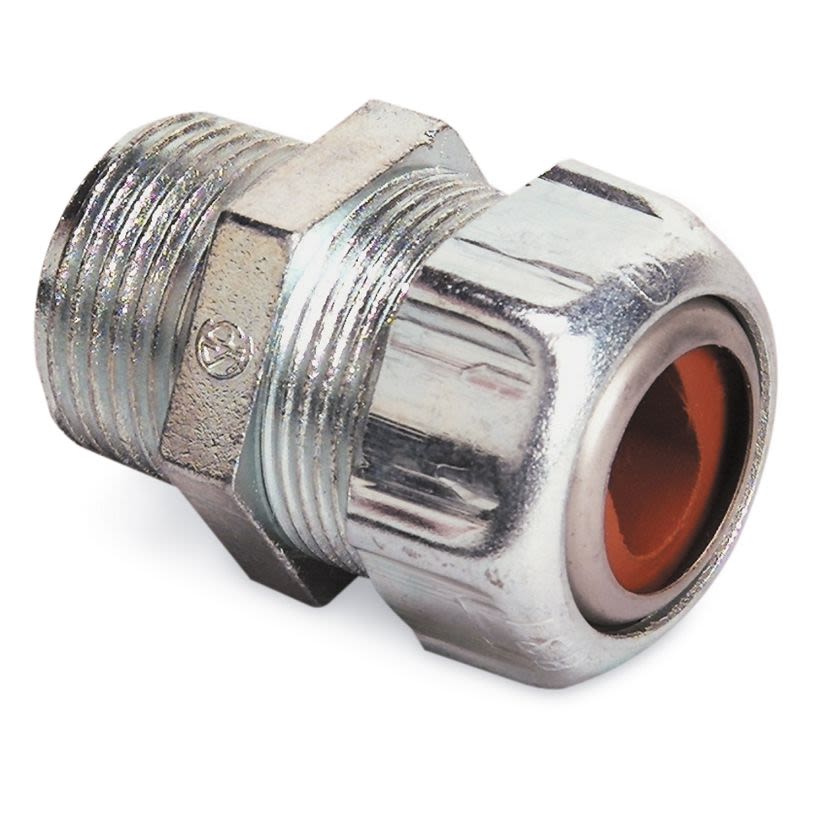

T&BĀ® 2443
T&B 2443 Watertight Cable Connector With Neoprene Bushing, 1-1/4 in Trade, 0.49 x 0.9 in to 0.64 x 1.05 in Cable Openings, Die Cast Zinc, Zinc Plated
T&BĀ® 2443
T&B 2443 Watertight Cable Connector With Neoprene Bushing, 1-1/4 in Trade, 0.49 x 0.9 in to 0.64 x 1.05 in Cable Openings, Die Cast Zinc, Zinc PlatedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
T&B Watertight Cable Connector, 1-1/4 in, Cable Openings: 0.49 x 0.9 in to 0.64 x 1.05 in, Oval Cable, Thread, Die Cast Zinc, Zinc Plated, Metallic, 2-1/16 in L x 1-15/16 in W
Attributes
Documents
Applications
Features
Attributes
Cable Openings0.49 x 0.9 in to 0.64 x 1.05 in
ColorMetallic
Connection TypeThread
Country of OriginCA
Dimensions2-1/16 in L x 1-15/16 in W
FinishZinc Plated
ManufacturerABB
MaterialDie Cast Zinc
Package TypeEACH
Trade Size1-1/4 in
Type of CableOval
Documents
Applications
For connecting underground feeder cables to a box or an enclosure
Features
- Design with two tapers inside the body-a slow one and a fast one-permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
- Neoprene bushing, resists oil and water, grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
- Hex gland and body take the same wrench opening and a stainless steel slip ring prevents cable from twisting as gland ring is being tightened
- Threads on the body are tapered for water sealing
- Stainless steel retaining ring protects cable jacket against abrasion, reduces installing torque effort
- Rugged ribbed steel gland construction
- 2-1/8 in max body corners
- 5/8 in L thread
- 2-1/16 in max gland corners
- A design with two tapers inside the body, a slow one and a fast one permits the stocking of fewer connectors for varied cable sizes and allows maximum take up
