Sta-Kon RZ22-8

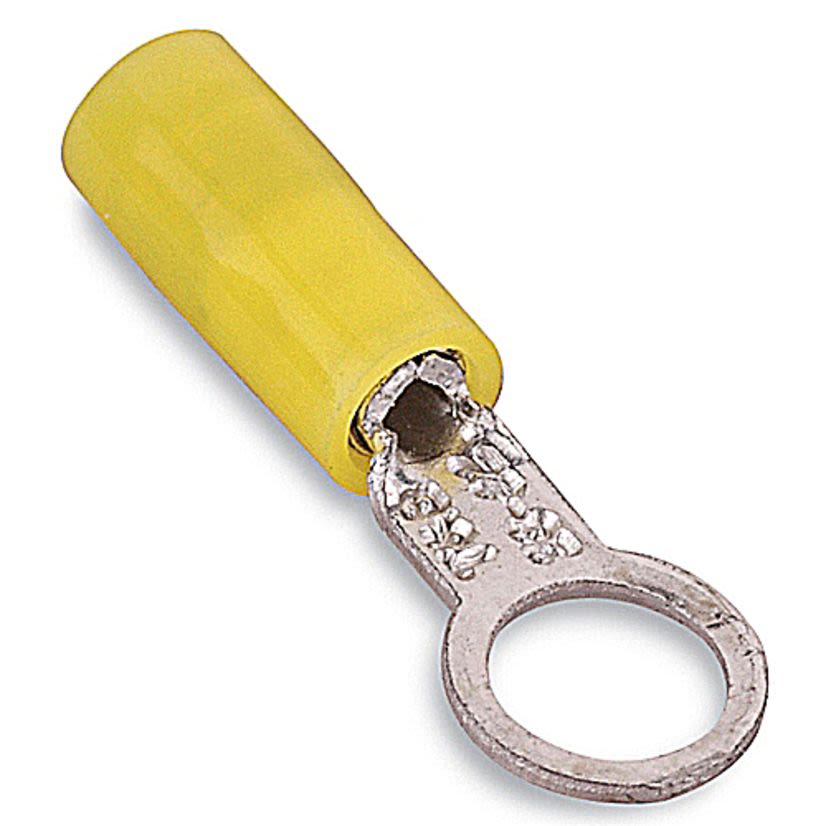

Sta-Kon RZ22-8 RZ Series Insulated Ring Terminal, 26 to 22 AWG Conductor, 3/4 in L, Brazed Seam Barrel, Copper, Yellow
Sta-Kon RZ22-8
Sta-Kon RZ22-8 RZ Series Insulated Ring Terminal, 26 to 22 AWG Conductor, 3/4 in L, Brazed Seam Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RZ22-8
Werner Part #65116
UPC786210804552
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RZ22-8
Werner Part #65116
UPC786210804552
Product Description
Sta-Kon Ring Terminal, Insulated, Series: RZ Series, 26 to 22 AWG Conductor, #8 Stud, 3/4 in Length, Brazed Seam Barrel, Ring Tongue, 0.25 in W x 0.02 in THK Tongue, 600 V AC, 0.083 in Dia Maximum Insulation, 0.23 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeBrazed Seam
ColorYellow
Conductor size26 to 22 AWG
Country of OriginUS
FinishTin Coated
ManufacturerABB
MaterialCopper
Package Height2.3 in
Package Length1.6 in
Package TypeEACH
Package Volume3.46 cu-in
Package Weight0.06 lb
Package Width0.9 in
SeriesRZ Series
Stud Size#8
Temperature Rating105 deg C
Tongue Size0.25 in W x 0.02 in THK
Tongue TypeRing
TypeInsulated
Type / StyleInsulated
Voltage Rating600 V AC
Applications
For WT1452 and ERG4006 tools
Features
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 100 pieces/pack
Specifications
0.083 in Dia Maximum Insulation, 0.23 in Clearance, Nylon Insulation
