Sta-Kon RDV717

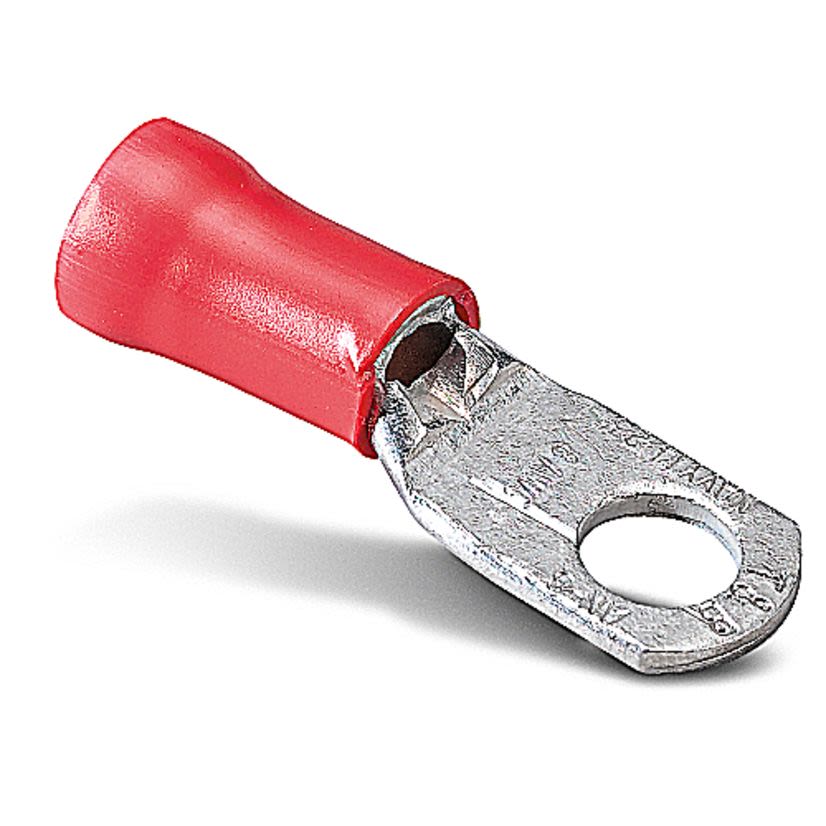

Sta-Kon RDV717 RD Series Insulated Ring Terminal, 8 AWG Conductor, 1.54 in L, Brazed/Overlapped Seam Barrel, Copper, Red
Sta-Kon RDV717
Sta-Kon RDV717 RD Series Insulated Ring Terminal, 8 AWG Conductor, 1.54 in L, Brazed/Overlapped Seam Barrel, Copper, RedNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RDV717
Werner Part #3856056
UPC786210915562
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RDV717
Werner Part #3856056
UPC786210915562
Product Description
Sta-Kon Ring Terminal, Insulated, Series: RD Series, 8 AWG Conductor, 1/4 in Stud, 1.54 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.46 in W x 0.04 in THK Tongue, 600 V AC, 0.34 in Dia Maximum Insulation, 0.36 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeBrazed/Overlapped Seam
ColorRed
Conductor size8 AWG
Country of OriginUS
FinishTin Coated
ManufacturerABB
MaterialCopper
Package Length6 in
Package TypeEACH
Package Volume86.4 cu-in
Package Weight0.01 lb
Package Width4.5 in
SeriesRD Series
Stud Size1/4 in
Temperature Rating105 deg C
Tongue Size0.46 in W x 0.04 in THK
Tongue TypeLarge Ring
TypeInsulated
Type / StyleInsulated
Voltage Rating600 V AC
Applications
ERG4007, TBM6 and TBM6S Tool Applications
Features
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 200 pieces/pack
Specifications
0.34 in Dia Maximum Insulation, 0.36 in Clearance, Vinyl Insulation
