Sta-Kon RC10-516X

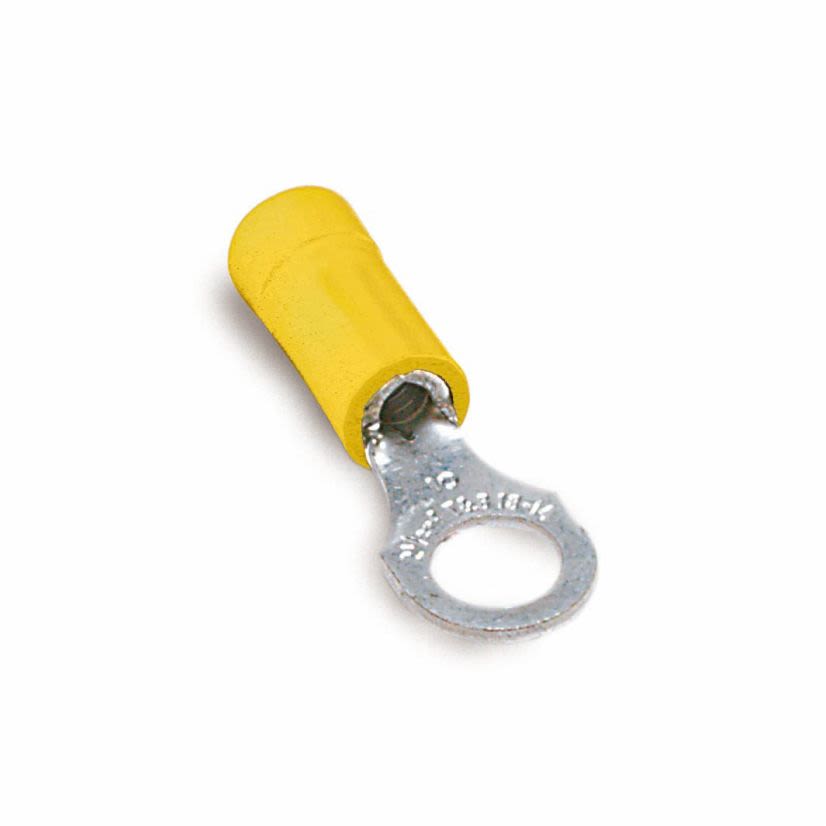

Sta-Kon RC10-516X RC Series Expanded Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.32 in L, Insulation Grip Sleeve Barrel, Copper, Yellow
Sta-Kon RC10-516X
Sta-Kon RC10-516X RC Series Expanded Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.32 in L, Insulation Grip Sleeve Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RC10-516X
Werner Part #439319
UPC786210804484
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RC10-516X
Werner Part #439319
UPC786210804484
Product Description
Sta-Kon Ring Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, 1/4 in Stud, 1.32 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.53 in W x 0.04 in THK Tongue, 600 V AC, 1/4 in Dia Maximum Insulation, 0.31 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeInsulation Grip Sleeve
ColorYellow
Conductor size12 to 10 AWG
Country of OriginUS
FinishTin Coated
ManufacturerABB
MaterialCopper
Package Height3.5 in
Package Length2.5 in
Package TypeEACH
Package Volume12.1 cu-in
Package Weight0.01 lb
Package Width1.3 in
SeriesRC Series
Stud Size1/4 in
Temperature Rating105 deg C
Tongue Size0.53 in W x 0.04 in THK
Tongue TypeRing
TypeExpanded Insulated
Type / StyleExpanded Insulated
Voltage Rating600 V AC
Applications
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A tools
Features
- Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, nylon insulated, Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- Expanded entry
- 50 pieces/pack
Specifications
1/4 in Dia Maximum Insulation, 0.31 in Clearance, Nylon Insulation
