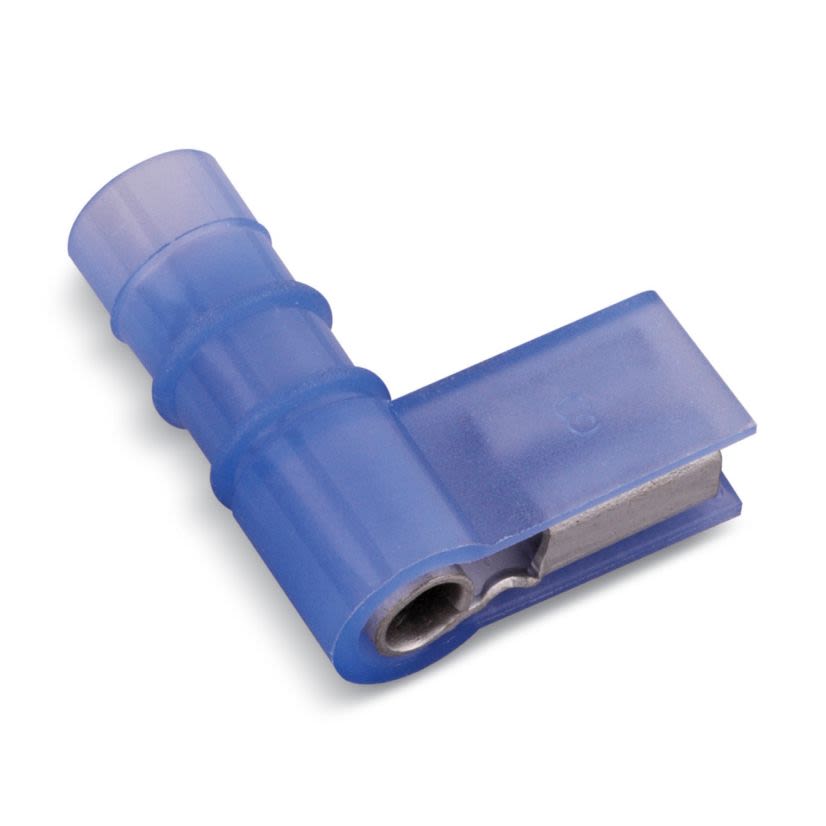

Sta-Kon RBD14-187A
Sta-Kon RBD14-187A 90 deg Flag Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Brass, Blue, Fully Insulated
Sta-Kon RBD14-187A
Sta-Kon RBD14-187A 90 deg Flag Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Brass, Blue, Fully InsulatedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Female Disconnect, 90 deg Flag, Series: 187, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Crimp Terminal, 600 V AC, 0.15 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Blue, Electroplated Tin, 0.74 in L x 0.61 in W, Insulated: Fully Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeInternal Serration Long
ColorBlue
Conductor size16 to 14 AWG
Country of OriginUS
Dimensions0.74 in L x 0.61 in W
FinishElectroplated Tin
InsulatedFully Insulated
ManufacturerABB
MaterialBrass
Package Height3 in
Package Length2.1 in
Package TypeEACH
Package Volume6.91 cu-in
Package Weight0.22 lb
Package Width1.1 in
Series187
Tab Size0.187 in W x 0.032 in THK
Temperature Rating105 deg C
Terminal TypeCrimp
Type90 deg Flag
Type / Style90 deg Flag
Voltage Rating600 V AC
Features
- Nylon fully insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
- Quick, reliable method of connection to terminal blocks and boards without the use of tools
Specifications
0.15 in Dia Maximum Insulation, 0.03 in THK Stock
