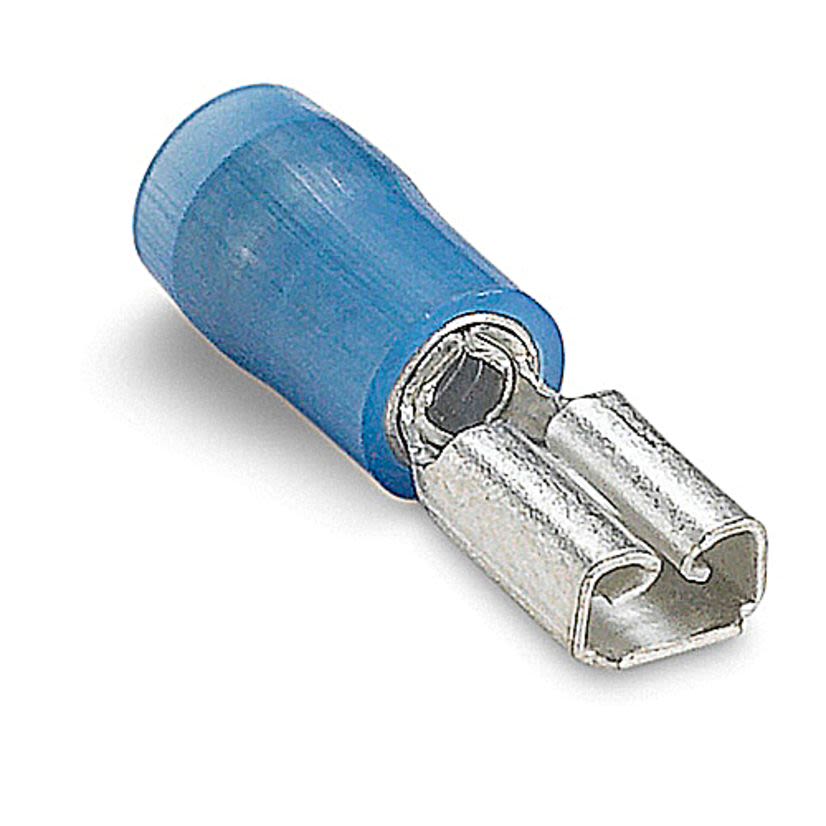

Sta-Kon RBD14-183
Sta-Kon RBD14-183 187 Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Brass, Blue, Insulated
Sta-Kon RBD14-183
Sta-Kon RBD14-183 187 Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Brass, Blue, InsulatedNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RBD14-183
Werner Part #65051
UPC786210816524
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RBD14-183
Werner Part #65051
UPC786210816524
Product Description
Sta-Kon Female Disconnect, Series: 187, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Crimp Terminal, 600 V AC, 0.163 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Blue, Electroplated Tin, 0.83 in L x 0.23 in W, Insulated: Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeInternal Serration Long
ColorBlue
Conductor size16 to 14 AWG
Country of OriginUS
Dimensions0.83 in L x 0.23 in W
FinishElectroplated Tin
InsulatedInsulated
ManufacturerABB
MaterialBrass
Package Height3.5 in
Package Length2.5 in
Package TypeEACH
Package Volume12.1 cu-in
Package Weight0.31 lb
Package Width1.3 in
Series187
Tab Size0.187 in W x 0.032 in THK
Temperature Rating105 deg C
Terminal TypeCrimp
Type / StyleDisconnects
Voltage Rating600 V AC
Features
- Nylon insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
- Quick, reliable method of connection to terminal blocks and boards without the use of tools
Specifications
0.163 in Dia Maximum Insulation, 0.03 in THK Stock
