Sta-Kon RB14-6FL

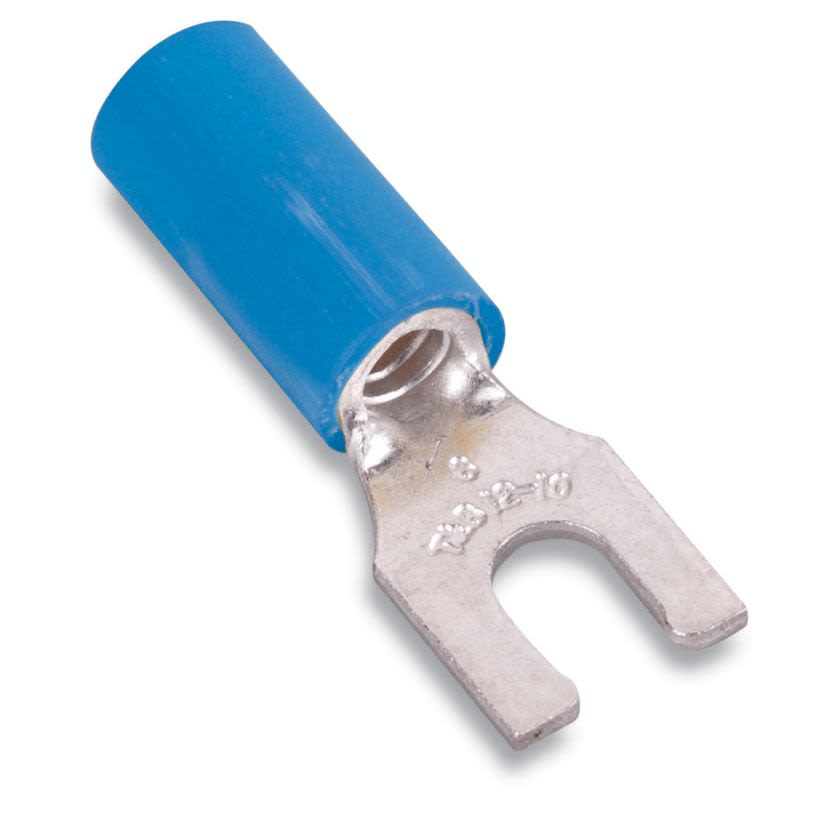

Sta-Kon RB14-6FL RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.87 in L, Brazed Seam/Serrated Barrel, Copper, Blue
Sta-Kon RB14-6FL
Sta-Kon RB14-6FL RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.87 in L, Brazed Seam/Serrated Barrel, Copper, BlueNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RB14-6FL
Werner Part #1302894
UPC786210887395
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RB14-6FL
Werner Part #1302894
UPC786210887395
Product Description
Sta-Kon Fork Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #6 Stud, 0.87 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.25 in W x 0.03 in THK Tongue, 600 V AC, Specifications: 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Blue
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Serrated
ColorBlue
Conductor size18 to 14 AWG
Country of OriginUS
FinishElectroplated Tin
ManufacturerABB
MaterialCopper
Package Height3 in
Package Length2.09 in
Package TypeEACH
Package Volume6.91 cu-in
Package Weight0.25 lb
Package Width1.1 in
SeriesRB Series
Stud Size#6
Temperature Rating105 deg C
Tongue Size0.25 in W x 0.03 in THK
Tongue TypeLocking Fork
TypeInsulated
Type / StyleInsulated
Voltage Rating600 V AC
Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Specifications
0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
