Sta-Kon RB14-10X

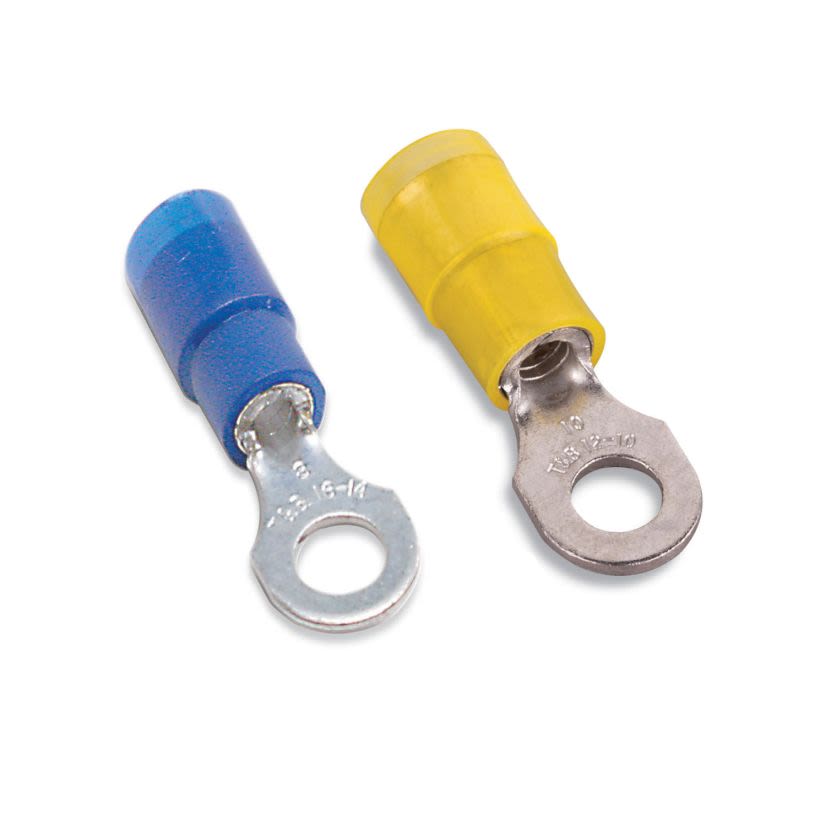

Sta-Kon RB14-10X RB Series Expanded Insulated Ring Terminal, 18 to 14 AWG Conductor, 0.95 in L, Insulation Grip Sleeve Barrel, Copper, Blue
Sta-Kon RB14-10X
Sta-Kon RB14-10X RB Series Expanded Insulated Ring Terminal, 18 to 14 AWG Conductor, 0.95 in L, Insulation Grip Sleeve Barrel, Copper, BlueNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RB14-10X
Werner Part #410211
UPC786210804156
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RB14-10X
Werner Part #410211
UPC786210804156
Product Description
Sta-Kon Ring Terminal, Expanded Insulated, Series: RB Series, 18 to 14 AWG Conductor, #10 Stud, 0.95 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V AC, 0.19 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Blue
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeInsulation Grip Sleeve
ColorBlue
Conductor size18 to 14 AWG
Country of OriginUS
FinishTin Coated
ManufacturerABB
MaterialCopper
Package Height3 in
Package Length2.09 in
Package TypeEACH
Package Volume6.91 cu-in
Package Weight0.25 lb
Package Width1.1 in
SeriesRB Series
Stud Size#10
Temperature Rating105 deg C
Tongue Size0.31 in W x 0.03 in THK
Tongue TypeRing
TypeExpanded Insulated
Type / StyleExpanded Insulated
Voltage Rating600 V AC
Applications
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A tools
Features
- Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, nylon insulated, Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- Expanded entry
- 100 pieces/pack
Specifications
0.19 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
