Sta-Kon RA2257

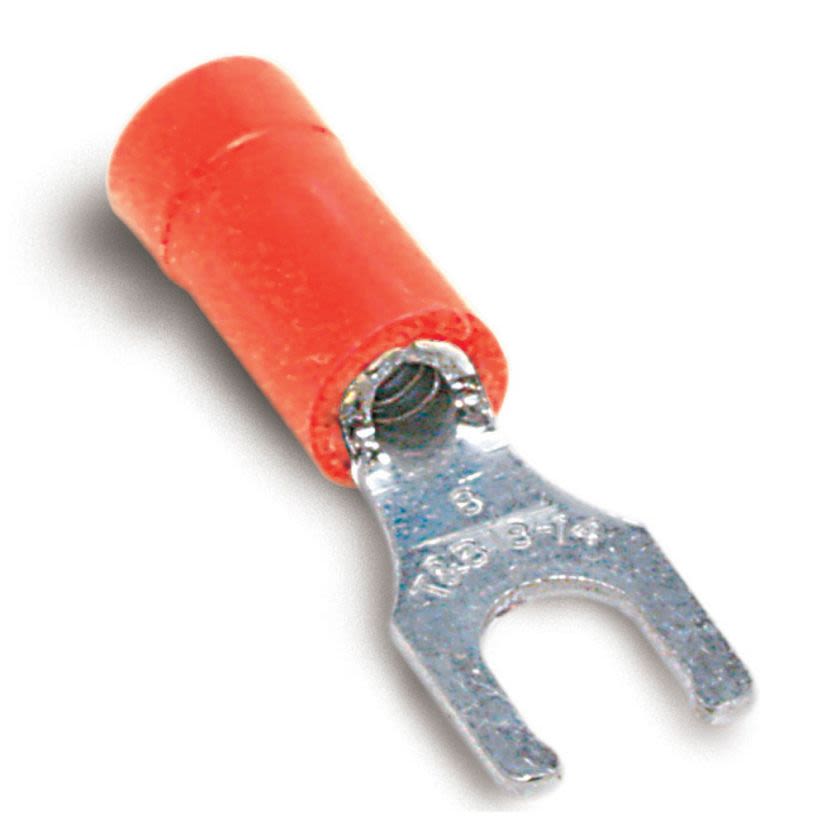

Sta-Kon RA2257 RA Series Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.97 in L, Brazed Seam/Serrated Barrel, Copper, Red
Sta-Kon RA2257
Sta-Kon RA2257 RA Series Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.97 in L, Brazed Seam/Serrated Barrel, Copper, RedNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RA2257
Werner Part #64983
UPC786210817927
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RA2257
Werner Part #64983
UPC786210817927
Product Description
Sta-Kon Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.02 in THK Tongue, 600 V AC, Specifications: 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Serrated
ColorRed
Conductor size22 to 16 AWG
Country of OriginUS
FinishElectroplated Tin
ManufacturerABB
MaterialCopper
Package Length6 in
Package TypeEACH
Package Volume86.4 cu-in
Package Width4.5 in
SeriesRA Series
Stud Size#10
Temperature Rating105 deg C
Tongue Size0.29 in W x 0.02 in THK
Tongue TypeLocking Fork
TypeInsulated
Type / StyleInsulated
Voltage Rating600 V AC
Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Specifications
0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation
