Sta-Kon RA18-14

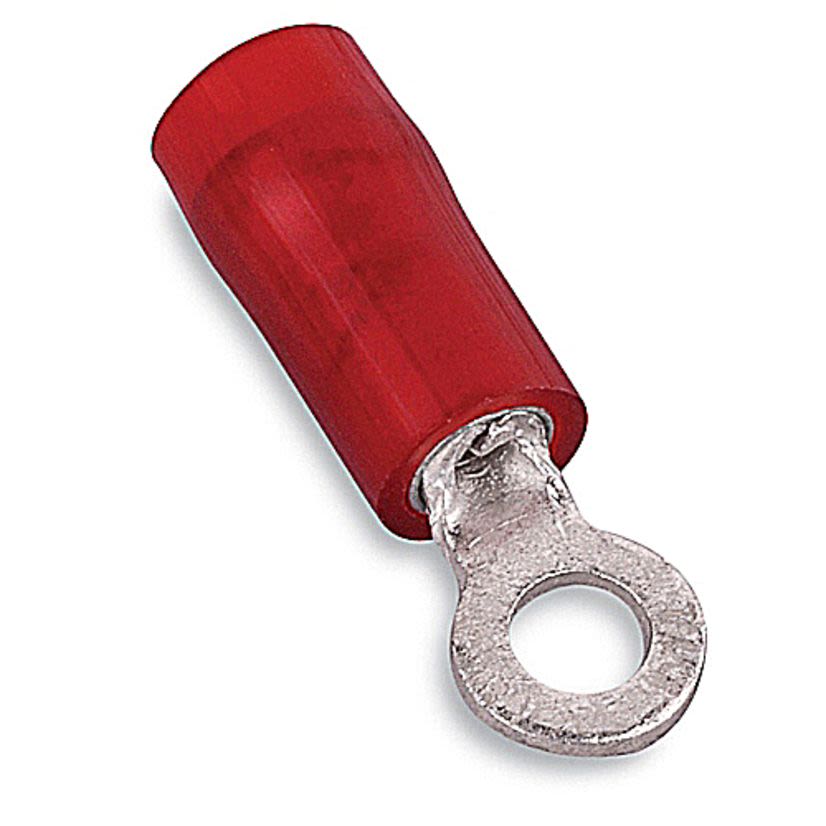

Sta-Kon RA18-14 RA Series Insulated Ring Terminal, 22 to 16 AWG Conductor, 1.1 in L, Insulation Grip Sleeve Barrel, Copper, Red
Sta-Kon RA18-14
Sta-Kon RA18-14 RA Series Insulated Ring Terminal, 22 to 16 AWG Conductor, 1.1 in L, Insulation Grip Sleeve Barrel, Copper, RedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Ring Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, 1/4 in Stud, 1.1 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 V AC, 0.136 in Dia Maximum Insulation, 0.31 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeInsulation Grip Sleeve
ColorRed
Conductor size22 to 16 AWG
Country of OriginUS
FinishTin Coated
ManufacturerABB
MaterialCopper
Package Height3.5 in
Package Length2.5 in
Package TypeEACH
Package Volume12.1 cu-in
Package Weight0.44 lb
Package Width1.3 in
SeriesRA Series
Stud Size1/4 in
Temperature Rating105 deg C
Tongue Size0.46 in W x 0.03 in THK
Tongue TypeRing
TypeInsulated
Type / StyleInsulated
Voltage Rating600 V AC
Applications
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A tools
Features
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 100 pieces/pack
Specifications
0.136 in Dia Maximum Insulation, 0.31 in Clearance, Nylon Insulation
