Sta-Kon F2049

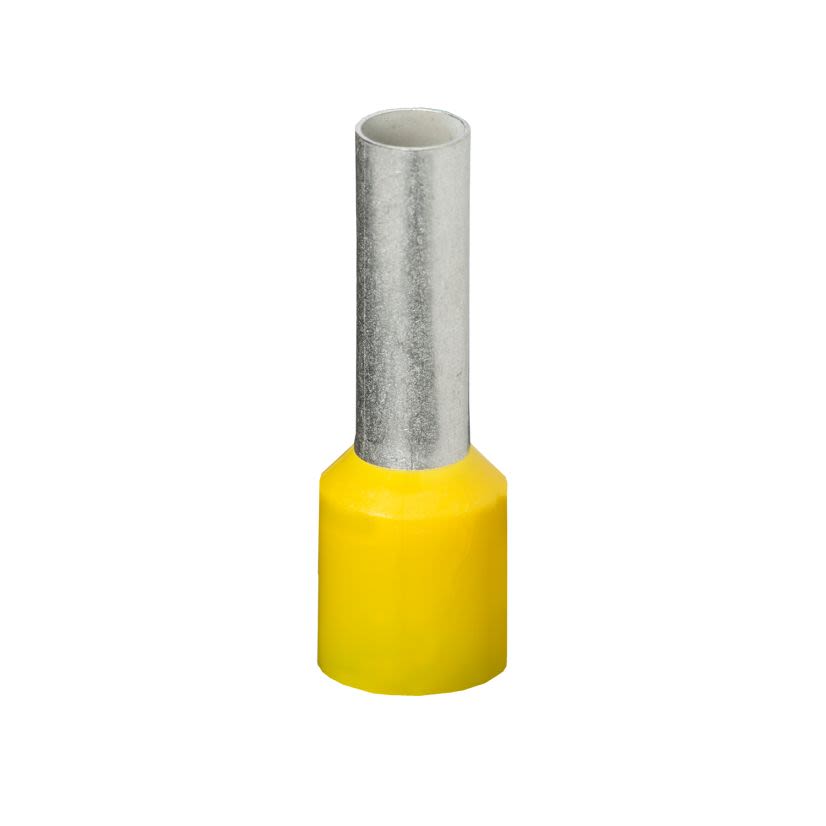

Sta-Kon F2049 F Series Insulated Wire Ferrule, 4 AWG Stranded Copper Conductor, 1.378 in L, Copper, Yellow
Sta-Kon F2049
Sta-Kon F2049 F Series Insulated Wire Ferrule, 4 AWG Stranded Copper Conductor, 1.378 in L, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #F2049
Werner Part #4040292
UPC786210335537
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #F2049
Werner Part #4040292
UPC786210335537
Product Description
Sta-Kon Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 4 AWG Conductor, 1.378 in Length, Long Barrel, 0.433 in Dia Barrel, 300 V AC, Specifications: 0.295 in ID x 0.866 in L x 0.008 in THK Pin, 0.433 in Dia Base, 105 deg C, Copper, Tin Coated, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.433 in Dia
Barrel TypeLong
ColorYellow
Conductor size4 AWG
Conductor TypeStranded Copper
Country of OriginDE
FinishTin Coated
ManufacturerABB
MaterialCopper
Package Length0.01 in
Package TypeEACH
Package Width0.01 in
SeriesF Series
Temperature Rating105 deg C
TypeInsulated
Type / StyleInsulated
Voltage Rating300 V AC
Features
- Polypropylene insulated
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- Made of high conductivity copper
- Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
- Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
- Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
- Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
- Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal
- ERG4 recommended tool
Specifications
0.295 in ID x 0.866 in L x 0.008 in THK Pin, 0.433 in Dia Base
