Sta-Kon B14-10F

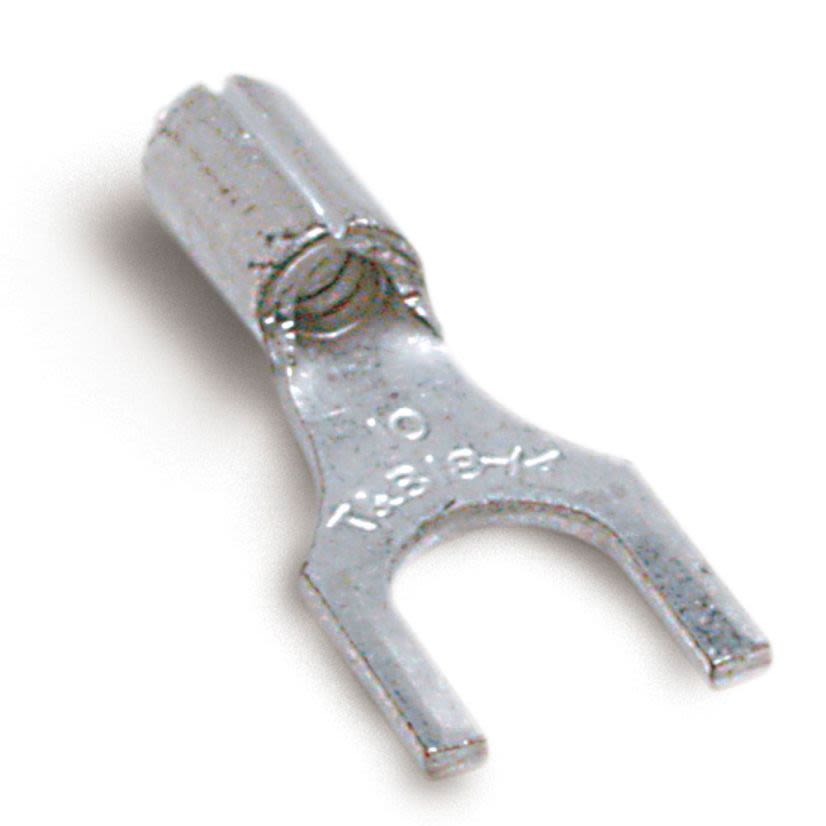

Sta-Kon B14-10F B Series Non-Insulated Fork Terminal, 18 to 14 AWG Conductor, 3/4 in L, Brazed Seam/Serrated Barrel, Copper, Metallic
Sta-Kon B14-10F
Sta-Kon B14-10F B Series Non-Insulated Fork Terminal, 18 to 14 AWG Conductor, 3/4 in L, Brazed Seam/Serrated Barrel, Copper, MetallicNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Fork Terminal, Non-Insulated, Series: B Series, 18 to 14 AWG Conductor, #10 Stud, 3/4 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V AC, Specifications: 0.27 in Clearance, 150 deg C, Copper, Electroplated Tin, Metallic
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Serrated
ColorMetallic
Conductor size18 to 14 AWG
Country of OriginUS
FinishElectroplated Tin
ManufacturerABB
MaterialCopper
Package Height3.5 in
Package Length2.63 in
Package TypeEACH
Package Volume15.55 cu-in
Package Weight0.19 lb
Package Width1.63 in
SeriesB Series
Stud Size#10
Temperature Rating150 deg C
Tongue Size0.31 in W x 0.03 in THK
Tongue TypeFork
TypeNon-Insulated
Type / StyleNon-Insulated
Voltage Rating600 V AC
Features
- Non-insulated fork terminals are made of electrolytic copper for high conductivity
- They can be installed with crimping tools having a single indentor or double indentor recommended for solid wire
- Brazed seam barrel is serrated for high pull-out value
- Serrated barrel increases grip-on wire
- WT110M, WT111M, WT112M, WT2000, ERG4001, ERG4002 recommended tools
Specifications
0.27 in Clearance
