Sta-Kon A87

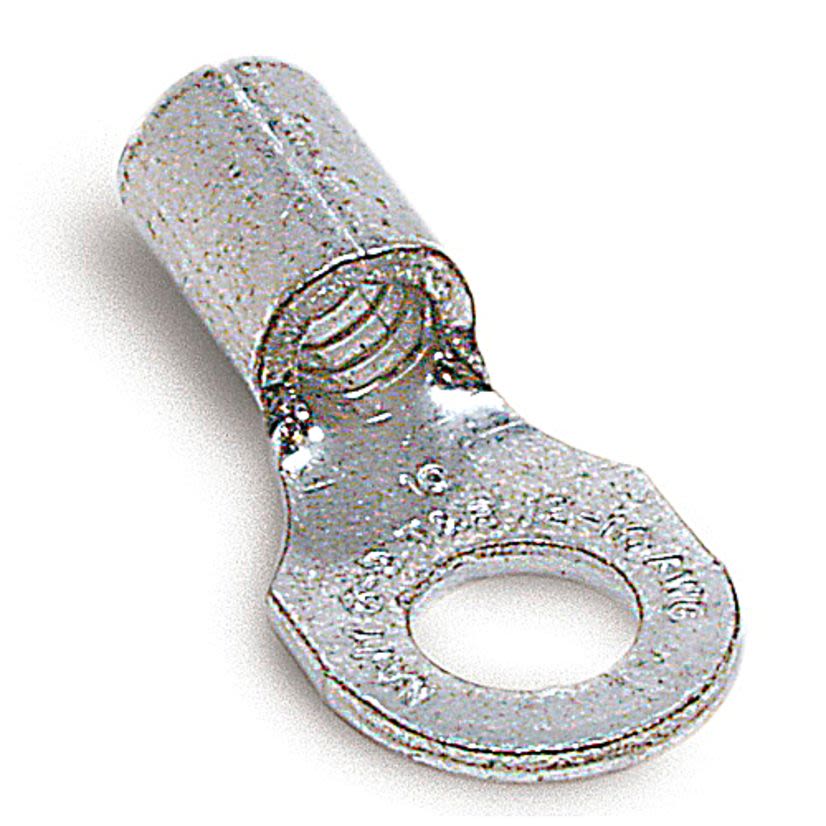

Sta-Kon A87 A Series Non-Insulated Ring Terminal, 22 to 16 AWG Conductor, 3/4 in L, Serrated Barrel, Copper, Metallic
Sta-Kon A87
Sta-Kon A87 A Series Non-Insulated Ring Terminal, 22 to 16 AWG Conductor, 3/4 in L, Serrated Barrel, Copper, MetallicNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #A87
Werner Part #3794511
UPC786210807928
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #A87
Werner Part #3794511
UPC786210807928
Product Description
Sta-Kon Ring Terminal, Non-Insulated, Series: A Series, 22 to 16 AWG Conductor, #10 Stud, 3/4 in Length, Serrated Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V AC, 0.27 in Clearance, 150 deg C, Copper, Tin Coated, Metallic
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeSerrated
ColorMetallic
Conductor size22 to 16 AWG
Country of OriginUS
FinishTin Coated
ManufacturerABB
MaterialCopper
Package Length3.5 in
Package TypeEACH
Package Volume34.56 cu-in
Package Width3 in
SeriesA Series
Stud Size#10
Temperature Rating150 deg C
Tongue Size0.31 in W x 0.03 in THK
Tongue TypeRing
TypeNon-Insulated
Type / StyleNon-Insulated
Voltage Rating600 V AC
Applications
For WT110M, WT111M, WT112M, WT2000 and ERG4002 tools
Features
- Non-insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Serrated barrel to increases grip-on wire
- 1000 pieces/pack
Specifications
0.27 in Clearance
