Sta-Kon 2RCS10X

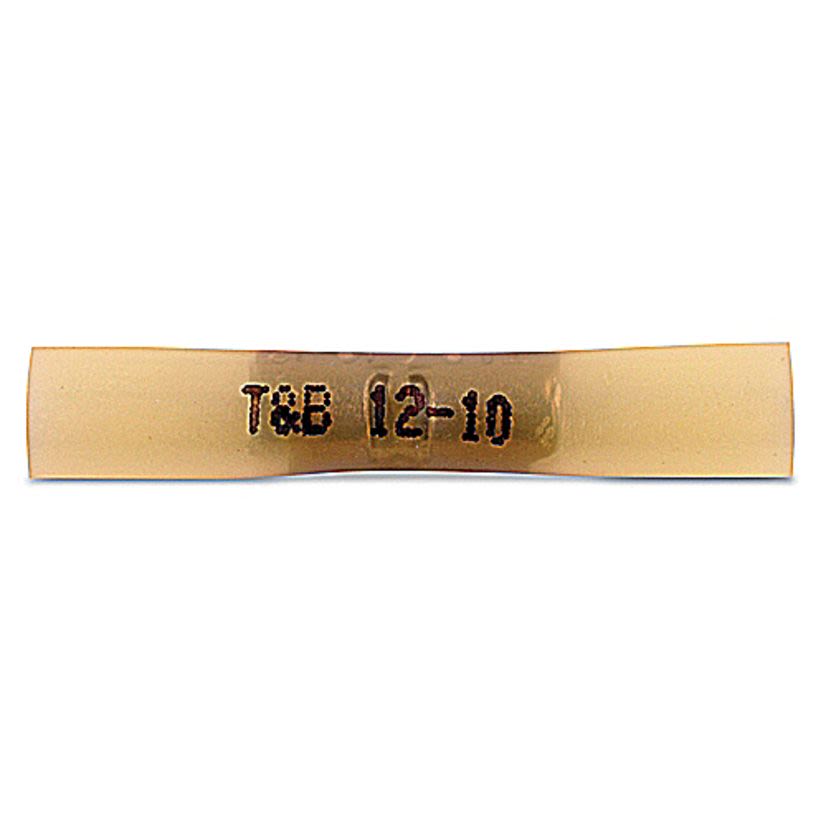

Sta-Kon 2RCS10X Heat Shrinkable Insulated Butt Splice Connector, 12 to 10 AWG Conductor, 1.6 in L, Copper, Yellow
Sta-Kon 2RCS10X
Sta-Kon 2RCS10X Heat Shrinkable Insulated Butt Splice Connector, 12 to 10 AWG Conductor, 1.6 in L, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #2RCS10X
Werner Part #63795
UPC786210703282
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #2RCS10X
Werner Part #63795
UPC786210703282
Product Description
Sta-Kon Butt Splice Connector, Heat Shrinkable Insulated, Series: RC Series, 12 to 10 AWG Conductor, 1.6 in Length, 600 V AC, Specifications: 1/4 in Maximum Insulation, 150 deg C, Copper, Yellow, Electro-TiN Plated, 0.31 in W Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Conductor size12 to 10 AWG
Country of OriginUS
Dimensions0.31 in W
FinishElectro-TiN Plated
ManufacturerABB
MaterialCopper
Package TypeEACH
SeriesRC Series
Temperature Rating150 deg C
TypeHeat Shrinkable Insulated
Type / StyleHeat Shrinkable Insulated
Voltage Rating600 V AC
Features
- Heat shrinkable with electro tin plated
- Self-insulated with heat shrinkable polyolefin and internally coated sealant
- Completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion and environmental exposure
Specifications
1/4 in Maximum Insulation
