Sta-Kon 2RAS18X

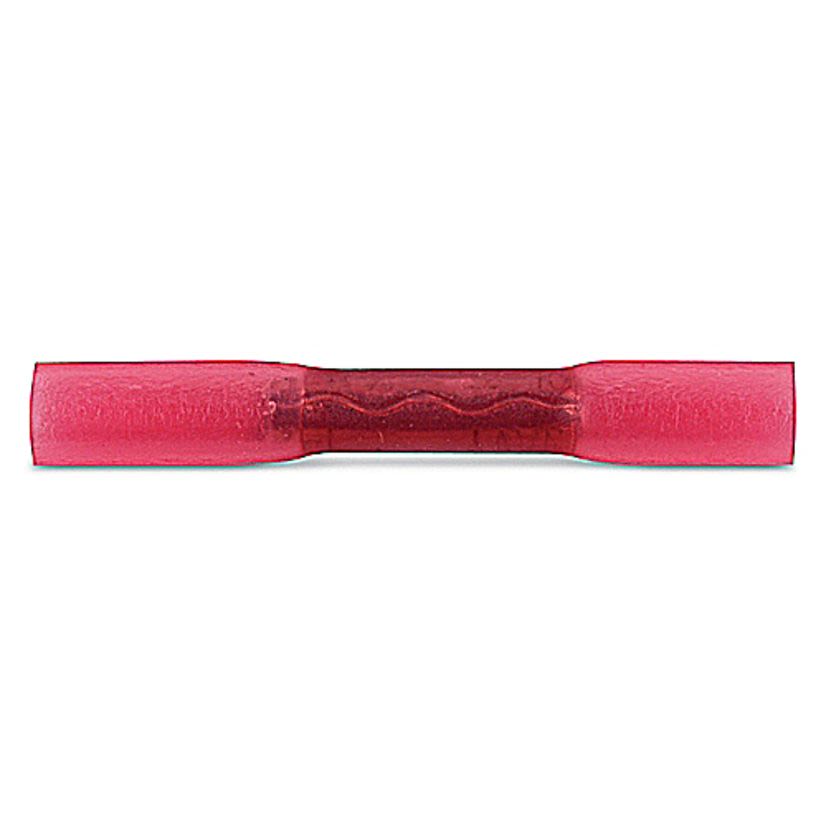

Sta-Kon 2RAS18X Heat Shrinkable Insulated Butt Splice Connector, 22 to 18 AWG Conductor, 1-1/2 in L, Copper, Red
Sta-Kon 2RAS18X
Sta-Kon 2RAS18X Heat Shrinkable Insulated Butt Splice Connector, 22 to 18 AWG Conductor, 1-1/2 in L, Copper, RedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Butt Splice Connector, Heat Shrinkable Insulated, Series: RA Series, 22 to 18 AWG Conductor, 1-1/2 in Length, 600 V AC, Specifications: 0.17 in Dia Maximum Insulation, 150 deg C, Copper, Red, Electro-TiN Plated, 1/4 in OD Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorRed
Conductor size22 to 18 AWG
Country of OriginUS
Dimensions1/4 in OD
FinishElectro-TiN Plated
ManufacturerABB
MaterialCopper
Package TypeEACH
SeriesRA Series
Temperature Rating150 deg C
TypeHeat Shrinkable Insulated
Type / StyleHeat Shrinkable Insulated
Voltage Rating600 V AC
Features
- Heat shrinkable with electro tin plated
- Self-insulated with heat shrinkable polyolefin and internally coated sealant
- Completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion and environmental exposure
Specifications
0.17 in Dia Maximum Insulation
