Sta-Kon 18RA-6X

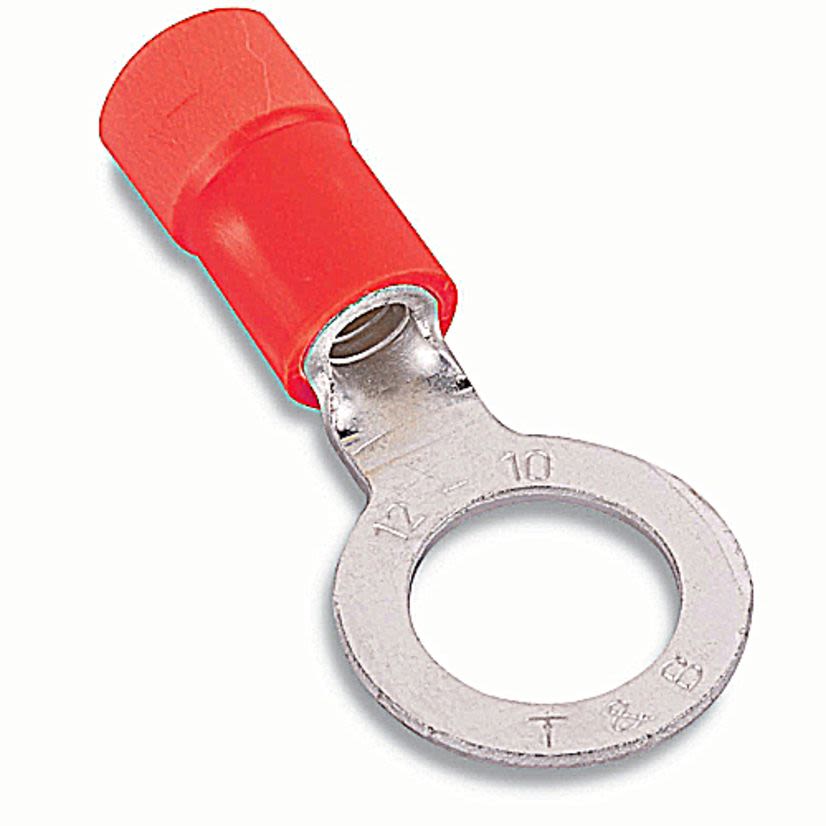

Sta-Kon 18RA-6X RA Series Expanded Insulated Ring Terminal, 22 to 16 AWG Conductor, 0.97 in L, Brazed Seam Barrel, Copper, Red
Sta-Kon 18RA-6X
Sta-Kon 18RA-6X RA Series Expanded Insulated Ring Terminal, 22 to 16 AWG Conductor, 0.97 in L, Brazed Seam Barrel, Copper, RedNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #18RA-6X
Werner Part #419100
UPC786210800875
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #18RA-6X
Werner Part #419100
UPC786210800875
Product Description
Sta-Kon Ring Terminal, Expanded Insulated, Series: RA Series, 22 to 16 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V AC, 0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeBrazed Seam
ColorRed
Conductor size22 to 16 AWG
Country of OriginUS
FinishTin Coated
ManufacturerABB
MaterialCopper
Package Length0.01 in
Package TypeEACH
Package Width0.01 in
SeriesRA Series
Stud Size#6
Temperature Rating105 deg C
Tongue Size0.31 in W x 0.03 in THK
Tongue TypeRing
TypeExpanded Insulated
Type / StyleExpanded Insulated
Voltage Rating600 V AC
Applications
For WT145C, WT2000, WT112M, ERG4001 and ERG4003 tools
Features
- Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, Self-insulated with a PVC (vinyl) insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
- Brazed seam barrel that is serrated to obtain high pullout value
- Made of copper and has electro-tin plating for corrosion-resistance
- Ring terminals won't fall-free even if the mounting screw loosens
- 100 pieces/pack
Specifications
0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
