Sta-Kon 10RC-10FLX

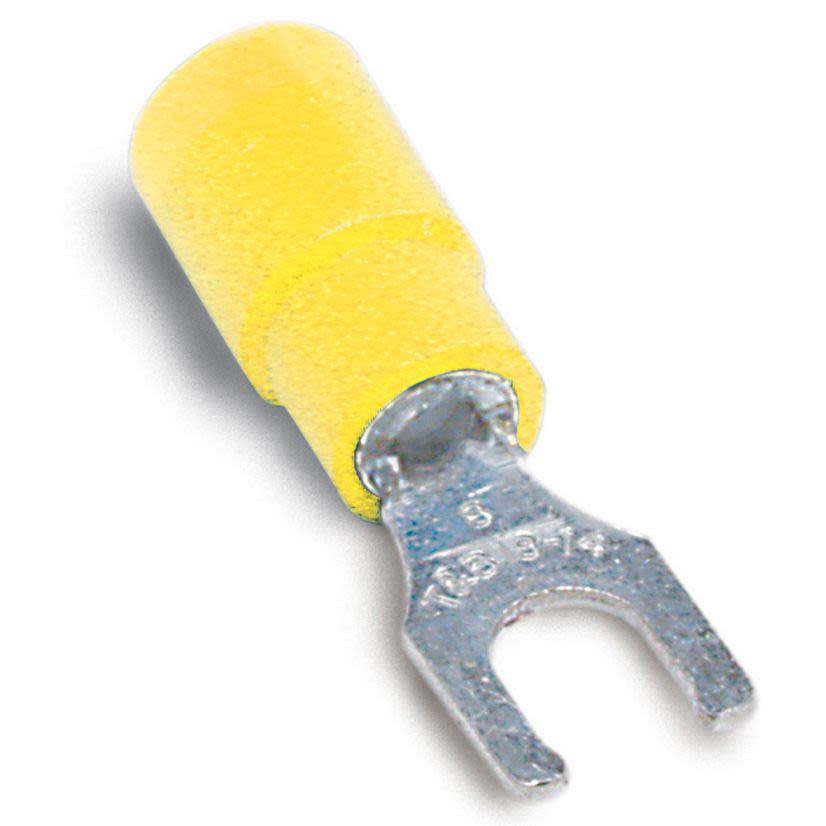

Sta-Kon 10RC-10FLX RC Series Expanded Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.1 in L, Brazed Seam/Serrated Barrel, Copper, Yellow
Sta-Kon 10RC-10FLX
Sta-Kon 10RC-10FLX RC Series Expanded Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.1 in L, Brazed Seam/Serrated Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Fork Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, #10 Stud, 1.1 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V AC, Specifications: 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Serrated
ColorYellow
Conductor size12 to 10 AWG
Country of OriginUS
FinishElectroplated Tin
ManufacturerABB
MaterialCopper
Package Length0.01 in
Package TypeEACH
Package Weight0.01 lb
Package Width0.01 in
SeriesRC Series
Stud Size#10
Temperature Rating105 deg C
Tongue Size0.37 in W x 0.04 in THK
Tongue TypeLocking Fork
TypeExpanded Insulated
Type / StyleExpanded Insulated
Voltage Rating600 V AC
Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Specifications
1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
