Southwire R40013-1A

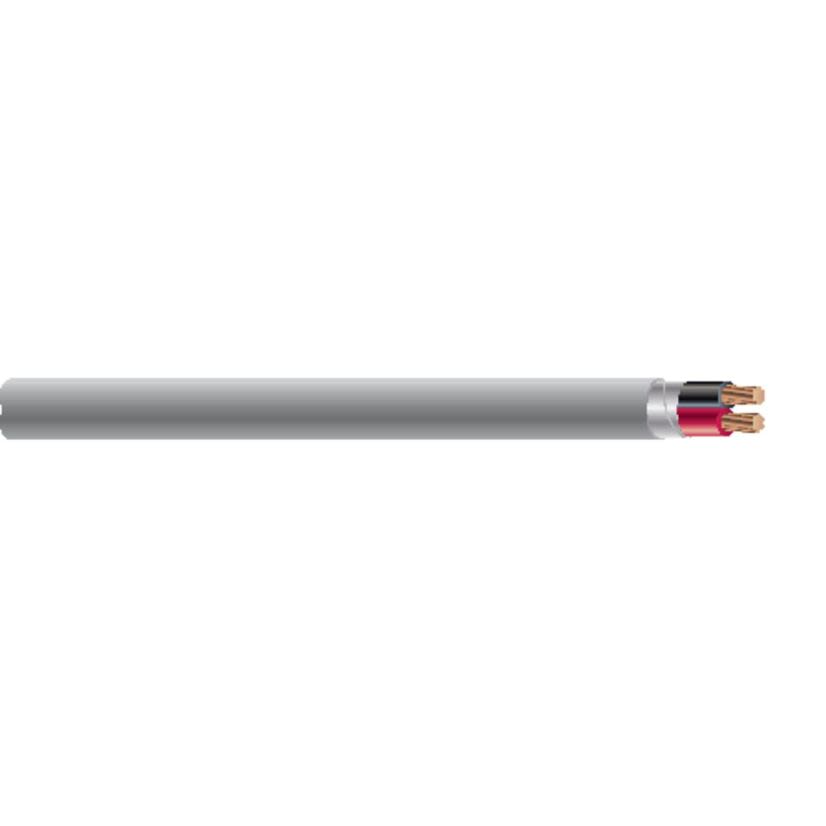

Southwire TAPPAN R40013-1A 31SR Type CMR/CL3R Multi-Conductor Shielded Riser Cable, 300 V AC, (2) 18 AWG Bare Stranded Copper Conductor, 1000 ft L
Southwire R40013-1A
Southwire TAPPAN R40013-1A 31SR Type CMR/CL3R Multi-Conductor Shielded Riser Cable, 300 V AC, (2) 18 AWG Bare Stranded Copper Conductor, 1000 ft LIn Stock: 9000more info
|
BrandSouthwire
MFG #R40013-1A
Werner Part #4208394
UPC032886882951
In Stock: 9000more info
|
BrandSouthwire
MFG #R40013-1A
Werner Part #4208394
UPC032886882951
Product Description
Southwire TAPPAN Riser Cable, Type CMR/CL3R Multi-Conductor Shielded, Series: 31SR, 300 V AC, 2 Conductors, Bare Stranded Copper Conductor, 18 AWG Conductor, 0.161 in OD, 1000 ft Length, 7 Strands, 6.92 Ohm Resistance, PVC Insulation, PVC Jacket, Gray Jacket, 60 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size18 AWG
Conductor TypeBare Stranded Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorGray
Jacket MaterialPVC
ManufacturerSouthwire Company
Number of Conductors2
Outside Diameter0.161 in
Resistance6.92 Ohm
Series31SR
Strands7
Temperature Rating60 deg C
TypeType CMR/CL3R Multi-Conductor Shielded
Voltage Rating300 V AC
Applications
Remote Control, Signaling and Power Limited Circuits, Security, Sound, Audio, Speaker Cable, Public Address, Intercom, Sound Reinforcement, Alarm and Access Control Circuits and Power Limited Controls Applications
Warranty
1 Year
Features
- Ripcord included for simple jacket tear-back and removal
- Aluminum foil-polyester reinforced tape and stranded tinned copper drain wire shielding
- Suitable for use in general purpose low voltage and power limited systems' circuits to NEC article 725 16 AWG and smaller also for communications circuits to NEC article 800
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEC Compliant|UL 444|UL 13
