Southwire P40133-1A

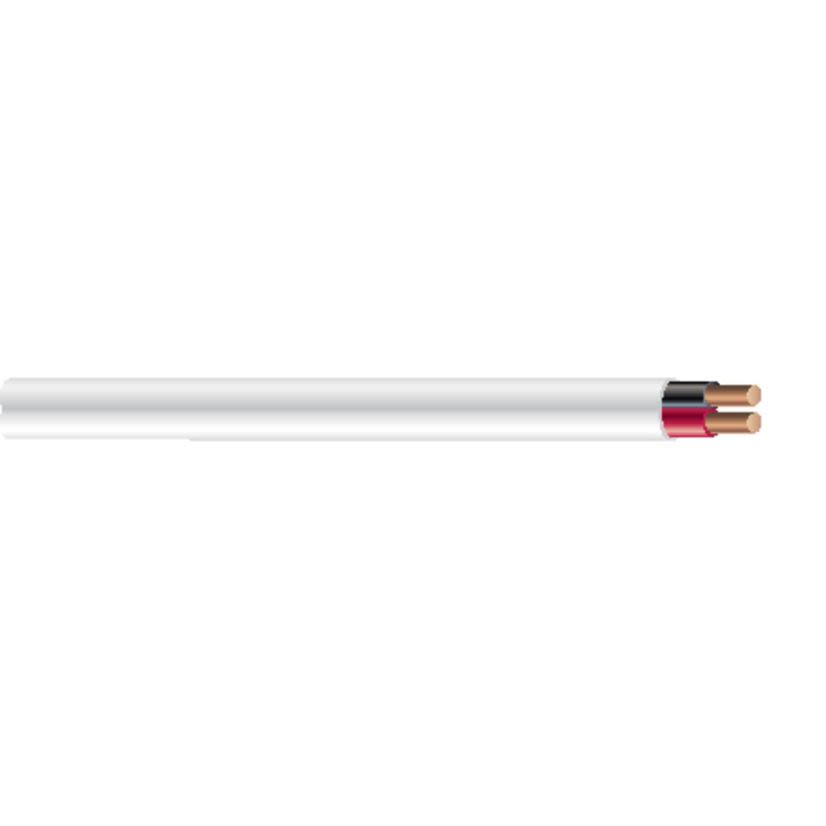

Southwire TAPPAN P40133-1A Type CMP/CL3P Shielded Plenum Cable, 300 V AC, (2) 18 AWG Bare Stranded Copper Conductor, 1000 ft L
Southwire P40133-1A
Southwire TAPPAN P40133-1A Type CMP/CL3P Shielded Plenum Cable, 300 V AC, (2) 18 AWG Bare Stranded Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Southwire TAPPAN Cable, Type CMP/CL3P Shielded Plenum, 300 V AC, 2 Conductors, Bare Stranded Copper Conductor, 18 AWG Conductor, 0.161 in OD, 1000 ft Length, 7 Strands, 6.92 Ohm Resistance, LS-PVC Insulation, PVC Jacket, White Jacket, 75 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size18 AWG
Conductor TypeBare Stranded Copper
Country of OriginUS
Insulation MaterialLS-PVC
Jacket ColorWhite
Jacket MaterialPVC
ManufacturerSouthwire Company
Number of Conductors2
Outside Diameter0.161 in
Package TypeEACH
Resistance6.92 Ohm
Strands7
Temperature Rating75 deg C
TypeType CMP/CL3P Shielded Plenum
Voltage Rating300 V AC
Documents
Applications
Security, Sound and Audio, Speaker Cable, Public Address, Intercom, Sound Reinforcement, Alarm and Access Control Circuits and Power Limited Controls Applications
Warranty
1 Year
Features
- Remote control, signaling and power limited circuits per NEC article 725
- 22 AWG through 16 AWG also communication circuits per NEC article 800
- Shielding overall - aluminum foil, polyester reinforced tape and stranded tinned copper drain wire
- Low smoke PVC insulation and jacket material
- NFPA 262 (formerly UL 910 steiner tunnel) flame test
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed to UL 444 and UL 13|Compliant
