Southwire 69005701
Southwire 69005701 Type MC Multi-Circuit THHN Interlocked Armored Cable, Reel Packaging, 600 V AC, (6) 12 AWG Solid Copper Conductor, 250 ft L
Southwire 69005701
Southwire 69005701 Type MC Multi-Circuit THHN Interlocked Armored Cable, Reel Packaging, 600 V AC, (6) 12 AWG Solid Copper Conductor, 250 ft LInventory Not Available
BrandSouthwire
MFG #69005701
Werner Part #3963037
UPC032886041020
Inventory Not Available
BrandSouthwire
MFG #69005701
Werner Part #3963037
UPC032886041020
Product Description

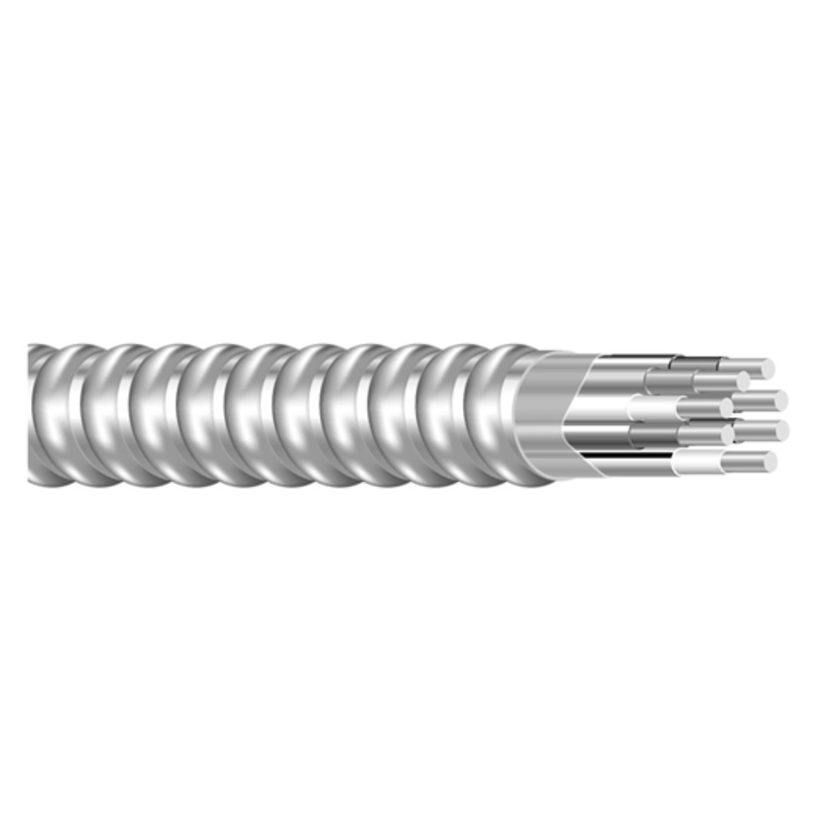

Southwire Interlocked Armored Cable, Type MC Multi-Circuit THHN, Reel Packaging, 600 V AC, 30 A, 6 Conductors, Solid Copper Conductor, 12 AWG Conductor, 0.574 in OD, 250 ft Length, PVC Insulation, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size12 AWG
Conductor TypeSolid Copper
Country of OriginUS
Insulation MaterialPVC
ManufacturerSouthwire Company
Number of Conductors6
Outside Diameter0.574 in
Package TypeEACH
Temperature Rating90 deg C
TypeType MC Multi-Circuit THHN
Voltage Rating600 V AC
Documents
Applications
For branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential building applications
Warranty
1 Year
Features
- Concealed or exposed installations
- Installation in cable tray and approved raceways
Specifications
Standards/Approvals: RoHS Compliant|REACH Compliant|UL File No.83, 1569, 1685|Federal Specification A-A59544|NFPA 70 Article 330|FT4/IEEE 1202
