Werner THHN Striped Copper Building Wire

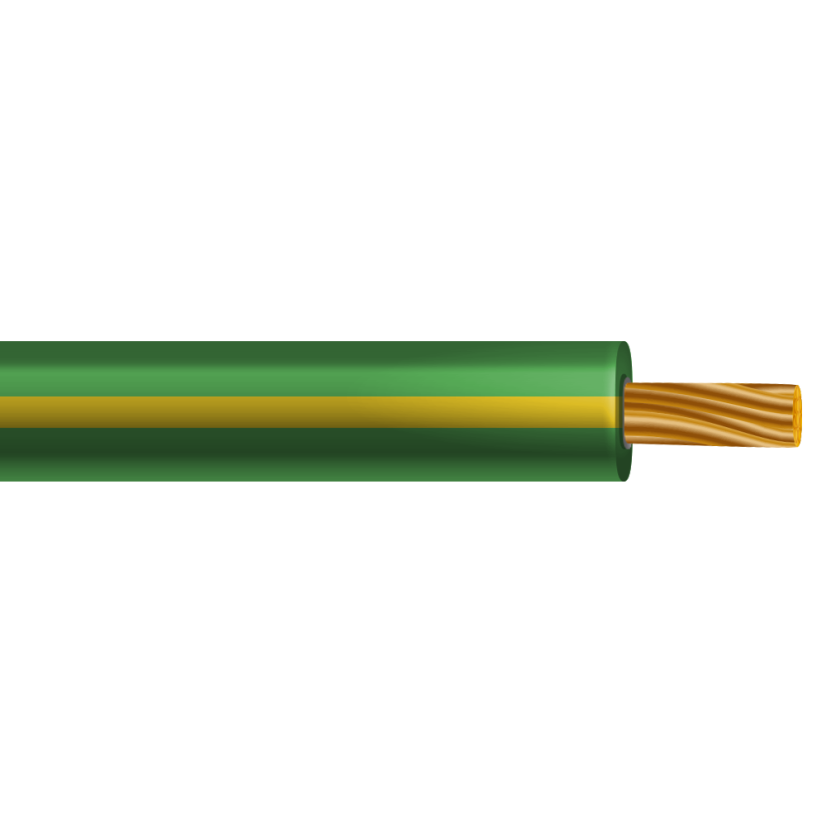

THHN Cable - Stranded, Green w/ Yellow Stripe, 12 AWG, 2500ft Spooled
Werner THHN Striped Copper Building Wire
THHN Cable - Stranded, Green w/ Yellow Stripe, 12 AWG, 2500ft SpooledOut of Stockmore info
|
BrandWerner
MFG #THHN Striped Copper Building Wire
Werner Part #65679
UPC032886066627
Out of Stockmore info
|
BrandWerner
MFG #THHN Striped Copper Building Wire
Werner Part #65679
UPC032886066627
Product Description
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THHN copper conductors are designed to be installed without application of a pulling lubricant. These conductors have multiple ratings. This is THHN Cable - Stranded, Green w/ Yellow Stripe, 12 AWG, 2500ft Spooled wire.
Documents
Features
Specifications
Features
- THHN or T90 Nylon- Dry locations not to exceed 90Ā° C
- THWN-2- Wet or dry locations not to exceed 90Ā°C or locations not to exceed 75Ā° C when exposed to oil
- THWN- Wet locations not to exceed 75Ā° C or dry locations not to exceed 90Ā° C or locations not to exceed 75Ā° C when exposed to oil
- TWN75- Wet locations not to exceed 75Ā° C
- MTW- Wet locations or when exposed to oil at temperatures not to exceed 60Ā° C or dry locations not to exceed 90Ā° C (with ampacity limited to that for 75Ā° C conductor temperature per NFPA 79)
- AWM- Dry locations not to exceed 105Ā° C only when rated and used as appliance wiring material
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|REACH Compliant|ASTM B3, B8, B787|UL 83, 758, 1063, 1581|NOM Certified|ANCE Certified|Federal Specification A-A-59544|NEMA WC-70|NFPA 70
