Southwire 63950003

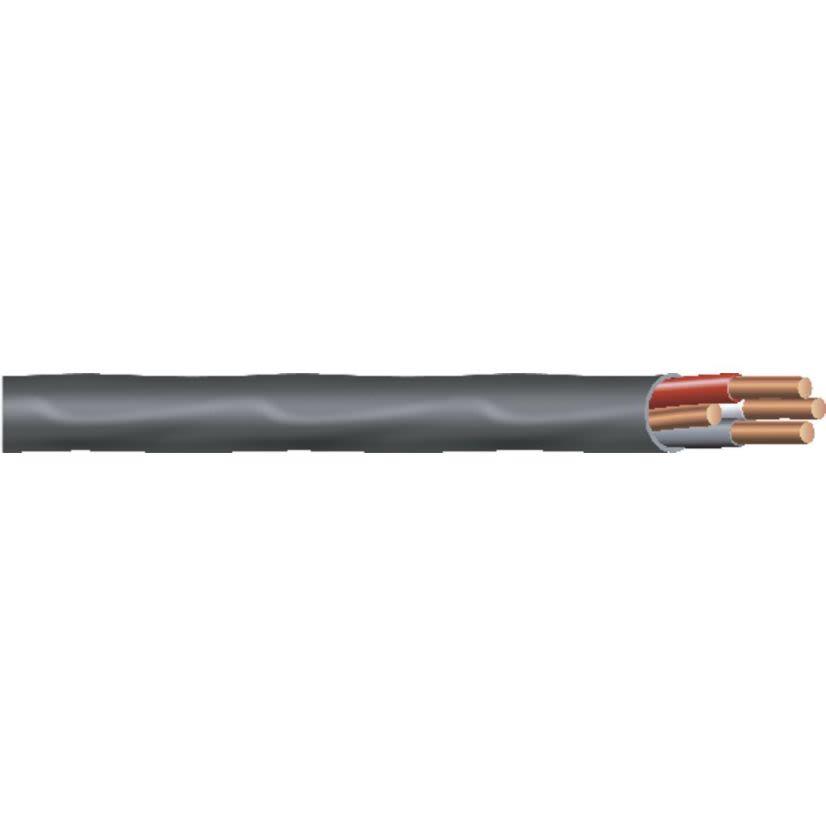

Southwire 63950003 Type NM-B Sheathed Cable With Ground Wire, Reel Packaging, 600 V AC, (3) 6 AWG Stranded Copper Conductor, 2500 ft L, Black
Southwire 63950003
Southwire 63950003 Type NM-B Sheathed Cable With Ground Wire, Reel Packaging, 600 V AC, (3) 6 AWG Stranded Copper Conductor, 2500 ft L, BlackIn Stock: 3942more info
|
BrandSouthwire
MFG #63950003
Werner Part #1656485
UPC032886663741
In Stock: 3942more info
|
BrandSouthwire
MFG #63950003
Werner Part #1656485
UPC032886663741
Product Description
Southwire Sheathed Cable, Type NM-B, Reel Packaging, 600 V AC, 55 A, 3 Conductors, Stranded Copper Conductor, 6 AWG Conductor, 650 mil OD, 2500 ft Length, 7/1 Strands, PVC Insulation, Nylon Jacket, Black Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size6 AWG
Conductor TypeStranded Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorBlack
Jacket MaterialNylon
ManufacturerSouthwire Company
Number of Conductors3
Outside Diameter650 mil
Package Height40.62 in
Package Length45.62 in
Package TypeEACH
Package Weight1.62 lb
Package Width45.62 in
Strands7/1
Temperature Rating90 deg C
TypeType NM-B
Voltage Rating600 V AC
Applications
For residential wiring as branch circuits for outlets, switches and other loads
Warranty
1 Year
Features
- Southwire Romex Brand SIMpull NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90C
- NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
- Voltage rating for NM-B cable is 600 V
Specifications
Standards/Approvals: ASTM B3, B8, UL 83, 719, Federal Specification A-A-59544, NFPA 70, RoHS/REACH, ARRA, Buy American Act Compliant
