Southwire 630186

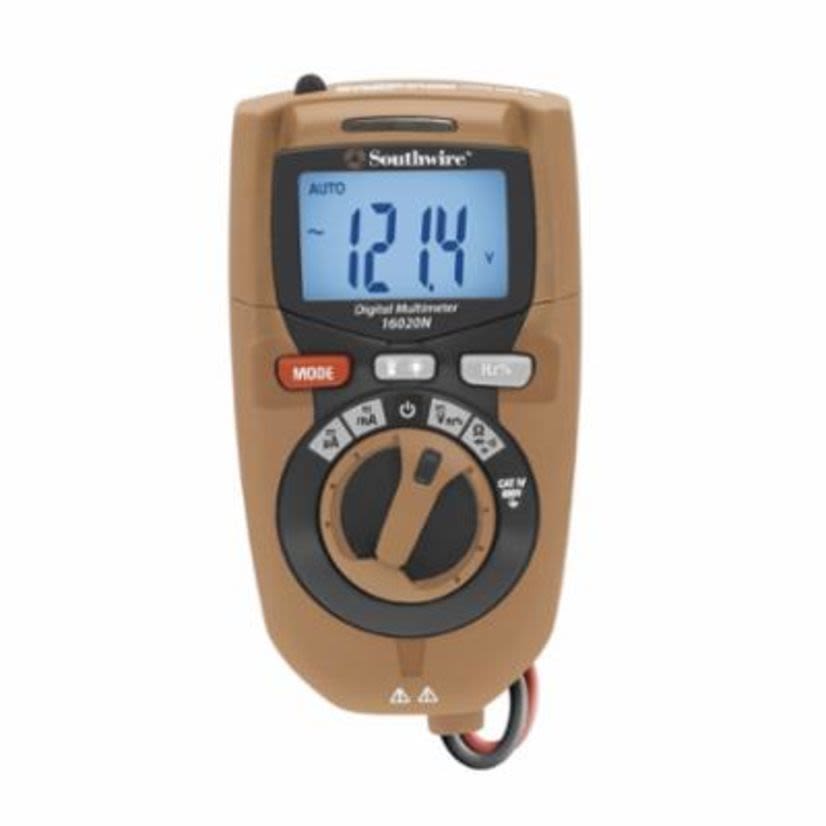

Southwire 630186 Auto-Ranging Digital Multimeter With Integrated Test Leads, 4 to 600 V AC/400 mV to 600 V DC/400 uA to 200 mA/400 Ohm to 40 MOhm/51.2 nF to 100 uF/9.999 Hz to 9.999 kHz Measuring, 600 V AC/DC, 200 mA, 40 MOhm, 4000 Count Backlit LCD Display
Southwire 630186 Auto-Ranging Digital Multimeter With Integrated Test Leads, 4 to 600 V AC/400 mV to 600 V DC/400 uA to 200 mA/400 Ohm to 40 MOhm/51.2 nF to 100 uF/9.999 Hz to 9.999 kHz Measuring, 600 V AC/DC, 200 mA, 40 MOhm, 4000 Count Backlit LCD Display

Southwire 630186

Southwire 630186 Auto-Ranging Digital Multimeter With Integrated Test Leads, 4 to 600 V AC/400 mV to 600 V DC/400 uA to 200 mA/400 Ohm to 40 MOhm/51.2 nF to 100 uF/9.999 Hz to 9.999 kHz Measuring, 600 V AC/DC, 200 mA, 40 MOhm, 4000 Count Backlit LCD Display
Non-stock product. Available to order - lead time may vary.

BrandSouthwire

MFG #630186

Werner Part #4191917

UPC032886963384

Non-stock product. Available to order - lead time may vary.

BrandSouthwire

MFG #630186

Werner Part #4191917

UPC032886963384

Product Description

Southwire Digital Multimeter, Auto-Ranging, 4 to 600 V AC/400 mV to 600 V DC/400 uA to 200 mA/400 Ohm to 40 MOhm/51.2 nF to 100 uF/9.999 Hz to 9.999 kHz, 600 V AC/DC, 200 mA, 10 kHz, 40 MOhm, Safety Rating: CAT IV 600 V, 100 uF, +/-2.3% + 10 Digits/1.2% + 3 Digits Accuracy, 1 V Resolution, 4000 Count Backlit LCD, AAA Battery, 4.6 in H x 2.3 in W x 1.4 in D, 32 to 104 deg F
Attributes
Accuracy+/-2.3% + 10 Digits/1.2% + 3 Digits
Battery TypeAAA
Capacitance100 uF
Country of OriginCN
Dimensions4.6 in H x 2.3 in W x 1.4 in D
Display Type4000 Count Backlit LCD
Frequency Rating10 kHz
ManufacturerSouthwire Company
Measuring Range4 to 600 V AC/400 mV to 600 V DC/400 uA to 200 mA/400 Ohm to 40 MOhm/51.2 nF to 100 uF/9.999 Hz to 9.999 kHz
Package Height9.17 in
Package Length2.76 in
Package TypeEACH
Package Weight0.65 lb
Package Width5.47 in
Resistance40 MOhm
Resolution1 V
Safety RatingCAT IV 600 V
Temperature Rating32 to 104 deg F
TypeAuto-Ranging
Type / StyleAuto-Ranging
Voltage Rating600 V AC/DC
