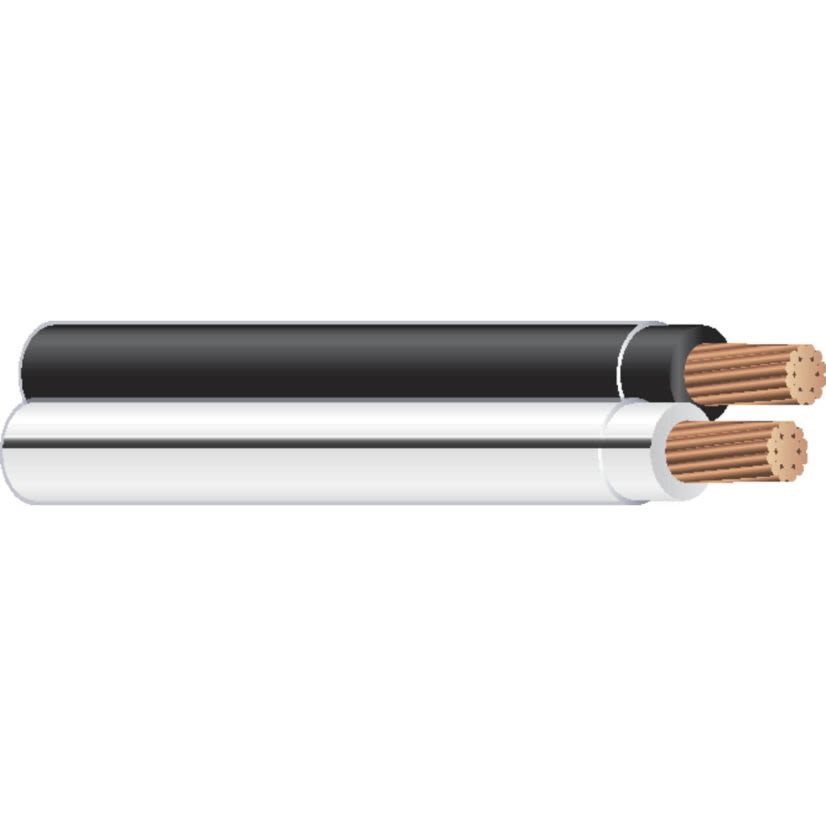

Werner THHN Striped Copper Building Wire
THHN Cable - Stranded, Black-White w/Black, 12 AWG, 1000ft SIMpull™ CoilPAK™
Werner THHN Striped Copper Building Wire
THHN Cable - Stranded, Black-White w/Black, 12 AWG, 1000ft SIMpull™ CoilPAK™In Stock: 2000more info
|
BrandWerner
MFG #THHN Striped Copper Building Wire
Werner Part #4054760
UPC032886921025
In Stock: 2000more info
|
BrandWerner
MFG #THHN Striped Copper Building Wire
Werner Part #4054760
UPC032886921025
Product Description
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THHN copper conductors are designed to be installed without application of a pulling lubricant. These conductors have multiple ratings. This is a Stranded Black-White w/Black 12 AWG wire and is packaged in a 1000 foot SIMpull® CoilPAK™.
Attributes
Documents
Features
Specifications
Attributes
Conductor size12 AWG
Conductor TypeStranded Copper
Country of OriginUnited States
Insulation MaterialPVC
Jacket ColorBlack/White
Jacket MaterialNylon
Number of Conductors2
Outside Diameter128 mil
ResistanceHeat, Moisture, Gasoline and Oil
Solid/StrandedStranded
Strands19
Temperature Rating90 deg C
TypeStripe Wire - THHN
Voltage Rating600 V
Features
- THHN or T90 Nylon- Dry locations not to exceed 90° C
- THWN-2- Wet or dry locations not to exceed 90°C or locations not to exceed 75° C when exposed to oil
- THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
- TWN75- Wet locations not to exceed 75° C
- MTW- Wet locations or when exposed to oil at temperatures not to exceed 60° C or dry locations not to exceed 90° C (with ampacity limited to that for 75° C conductor temperature per NFPA 79)
- AWM- Dry locations not to exceed 105° C only when rated and used as appliance wiring material
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ASTM Specified|UL 83, 1581, 1063 (MTW)|CSA Certified|NOM-ANCE 90(D)C|Federal Specification A-A-59544, NEC NFPA 70
