Southwire 58027105

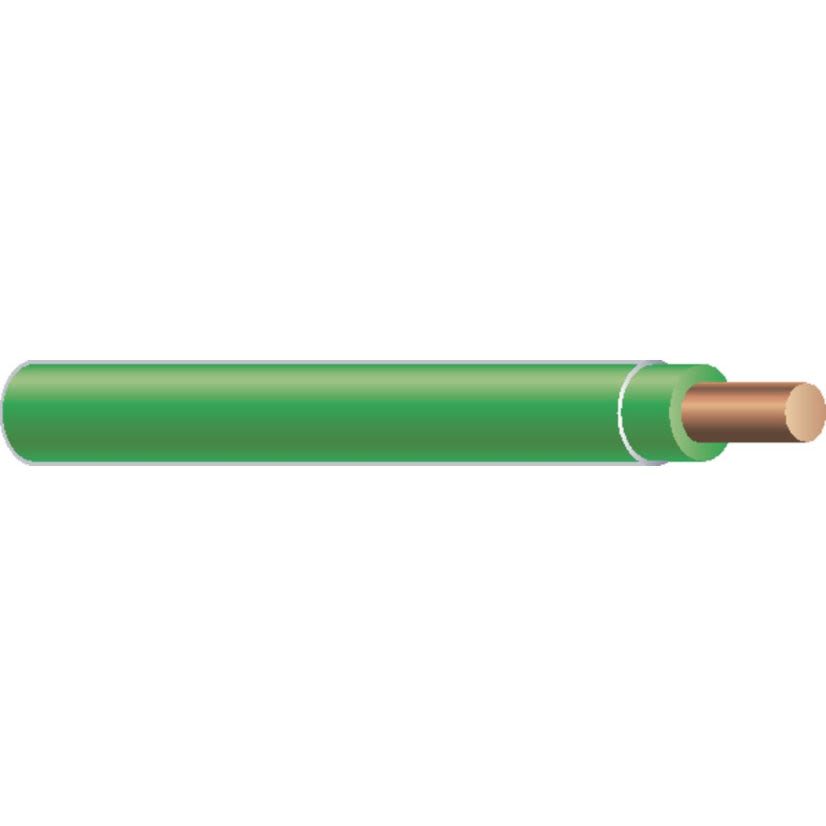

Southwire SIMpull 58027105 THHN/THWN Building Wire, 600 V AC, (1) 12 AWG Solid Copper Conductor, 2000 ft L, Green
Southwire 58027105
Southwire SIMpull 58027105 THHN/THWN Building Wire, 600 V AC, (1) 12 AWG Solid Copper Conductor, 2000 ft L, GreenNon-stock product. Available to order - lead time may vary.
BrandSouthwire
MFG #58027105
Werner Part #3979692
UPC032886912566
Non-stock product. Available to order - lead time may vary.
BrandSouthwire
MFG #58027105
Werner Part #3979692
UPC032886912566
Product Description
Southwire SIMpull Building Wire, THHN/THWN, 600 V AC, 20 A, 1 Conductors, Solid Copper Conductor, 12 AWG Conductor, 119 mil OD, 2000 ft Length, 1 Strands, PVC Insulation, Nylon Jacket, Green Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size12 AWG
Conductor TypeSolid Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorGREEN
Jacket MaterialNylon
ManufacturerSouthwire Company
Number of Conductors1
Outside Diameter119 mil
Package TypeEACH
ResistanceHeat, Moisture, Gasoline and Oil
Strands1
Temperature Rating90 deg C
TypeTHHN/THWN
Voltage Rating600 V AC
Applications
Commercial Applications
Warranty
1 Year
Features
- THWN- Wet locations not to exceed 75 deg C or dry locations not to exceed 90 deg C or locations not to exceed 75 deg C when exposed to oil
- Stationary package design reduces pulling effort
- Payoffs with striped neutrals for greater efficiency and less handling
- SIMpull NoLube jacket further reduces pulling tension
- Designed to help reduce potential lifting/handling/pulling injuries
- Space saving, multi-wire Coil PAKTM
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ASTM Specified|UL 83, 1581, 1063 (MTW)|CSA Certified|NOM-ANCE 90(D)C|Federal Specification A-A-59544, NEC NFPA 70
