Southwire 58017705

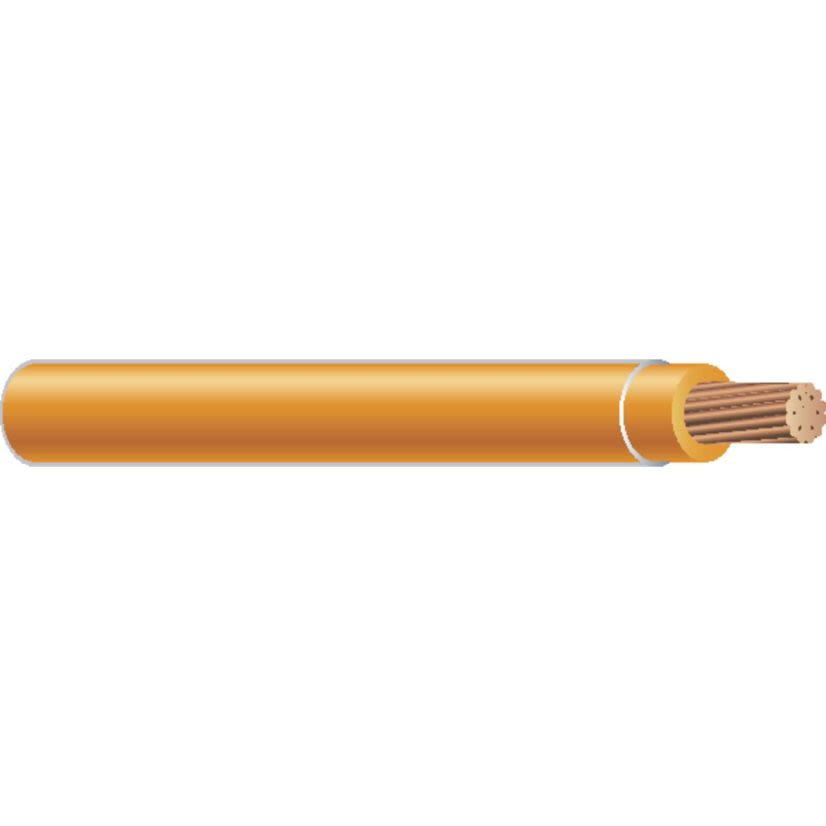

Southwire NoLube SIMpull 58017705 Type THHN/THWN/AWM Building Wire, Coil Packaging, 600 V AC, (1) 14 AWG Stranded Copper Conductor, 2500 ft L, Orange
Southwire 58017705
Southwire NoLube SIMpull 58017705 Type THHN/THWN/AWM Building Wire, Coil Packaging, 600 V AC, (1) 14 AWG Stranded Copper Conductor, 2500 ft L, OrangeNon-stock product. Available to order - lead time may vary.
BrandSouthwire
MFG #58017705
Werner Part #3979682
UPC032886912207
Non-stock product. Available to order - lead time may vary.
BrandSouthwire
MFG #58017705
Werner Part #3979682
UPC032886912207
Product Description
Southwire NoLube SIMpull Building Wire, Type THHN/THWN/AWM, Coil Packaging, 600 V AC, 15 A, 1 Conductor, Stranded Copper Conductor, 14 AWG Conductor, 102 mil OD, 2500 ft Length, 19 Strands, PVC Insulation, Nylon Jacket, Orange Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size14 AWG
Conductor TypeStranded Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorOrange
Jacket MaterialNylon
ManufacturerSouthwire Company
Number of Conductors1
Outside Diameter102 mil
Packaging TypeCoil
Strands19
Temperature Rating90 deg C
TypeType THHN/THWN/AWM
Voltage Rating600 V AC
Applications
For used in conduit and cable trays for services, feeders and branch circuit in commercial or industrial applications
Warranty
1 Year
Features
- THWN- Wet locations not to exceed 75 deg C or dry locations not to exceed 90 deg C or locations not to exceed 75 deg C when exposed to oil
- Stationary package design reduces pulling effort
- payoffs with striped neutrals for greater efficiency and less handling
- SIMpull NoLube jacket further reduces pulling tension
- Designed to help reduce potential lifting/handling/pulling injuries
- Space saving, multi-wire Coil PAKTM
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|REACH Compliant|ASTM B3, B8, B787|UL 83, 758, 1063, 1581|NOM Certified|ANCE Certified|Federal Specification A-A-59544|NEMA WC-70|NFPA 70
