Southwire 55877404

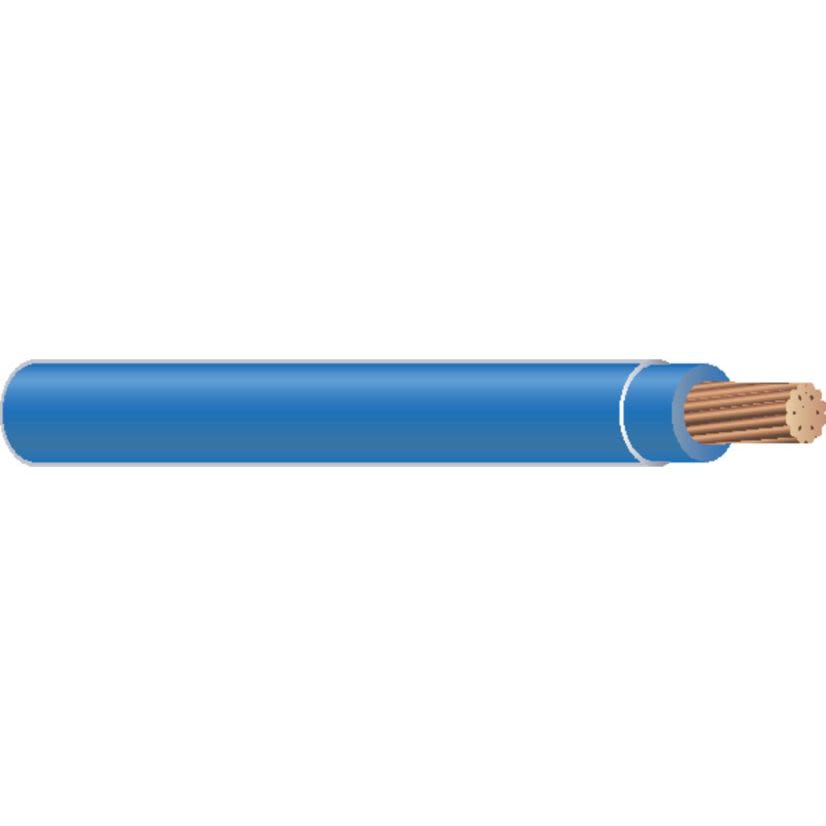

Southwire NoLube SIMpull 55877404 Type THHN/THWN-2/MTW Building Wire, Reel Packaging, 600 V AC, (1) 1/0 AWG Stranded Copper Conductor, 2500 ft L, Blue
Southwire 55877404
Southwire NoLube SIMpull 55877404 Type THHN/THWN-2/MTW Building Wire, Reel Packaging, 600 V AC, (1) 1/0 AWG Stranded Copper Conductor, 2500 ft L, BlueIn Stock: 1701more info
|
BrandSouthwire
MFG #55877404
Werner Part #2018286
UPC032886913518
In Stock: 1701more info
|
BrandSouthwire
MFG #55877404
Werner Part #2018286
UPC032886913518
Product Description
Southwire NoLube SIMpull Building Wire, Type THHN/THWN-2/MTW, Reel Packaging, 600 V AC, 170 A, 1 Conductor, Stranded Copper Conductor, 1/0 AWG Conductor, 474 mil OD, 2500 ft Length, 19 Strands, PVC Insulation, Nylon Jacket, Blue Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size1/0 AWG
Conductor TypeStranded Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorBlue
Jacket MaterialNylon
ManufacturerSouthwire Company
Number of Conductors1
Outside Diameter474 mil
Package TypeEACH
Strands19
Temperature Rating90 deg C
TypeType THHN/THWN-2/MTW
Voltage Rating600 V AC
Applications
For used in conduit and cable trays for services, feeders and branch circuit in commercial or industrial applications
Warranty
1 Year
Features
- THWN-2- Wet or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|REACH Compliant|ASTM B3, B8, B787|UL 83, 758, 1063, 1581|NOM Certified|ANCE Certified|Federal Specification A-A-59544|NEMA WC-70|NFPA 70
