Southwire 55670704
Southwire NoLube SIMpull 55670704 Type THHN/THWN-2/MTW Building Wire, Reel Packaging, 600 V AC, (1) 350 kcmil Stranded Copper Conductor, 2500 ft L, Gray
Southwire 55670704
Southwire NoLube SIMpull 55670704 Type THHN/THWN-2/MTW Building Wire, Reel Packaging, 600 V AC, (1) 350 kcmil Stranded Copper Conductor, 2500 ft L, GrayIn Stock: 6160more info
|
In Stock: 6160more info
|
Product Description

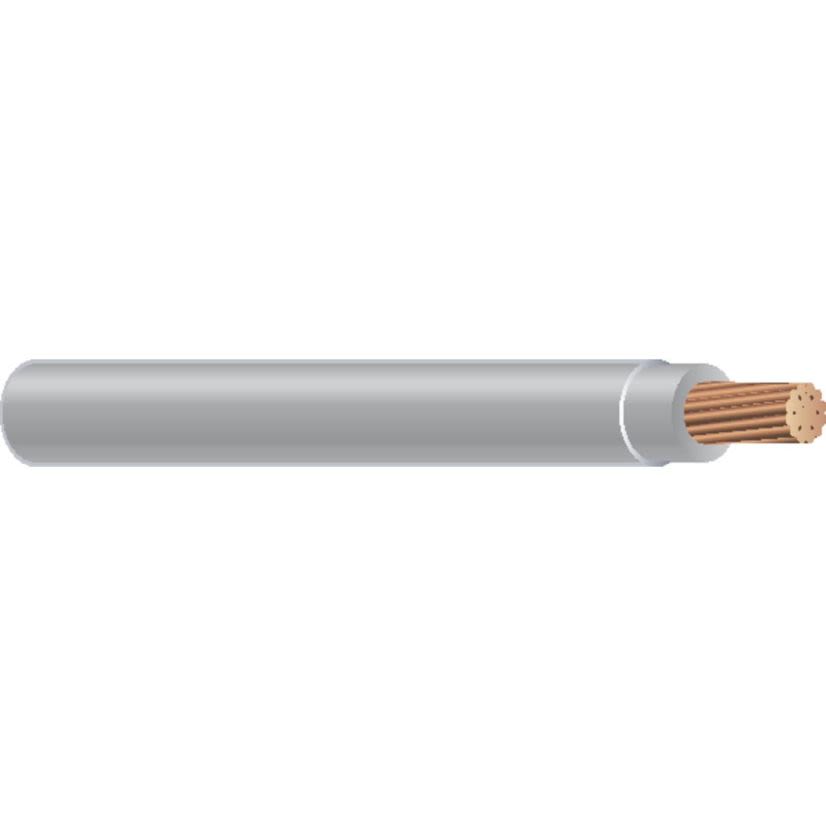

Southwire NoLube SIMpull Building Wire, Type THHN/THWN-2/MTW, Reel Packaging, 600 V AC, 350 A, 1 Conductor, Stranded Copper Conductor, 350 kcmil Conductor, 797 mil OD, 2500 ft Length, 37 Strands, PVC Insulation, Nylon Jacket, Gray Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size350 kcmil
Conductor TypeStranded Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorGray
Jacket MaterialNylon
ManufacturerSouthwire Company
Number of Conductors1
Outside Diameter797 mil
Packaging TypeReel
Strands37
Temperature Rating90 deg C
TypeType THHN/THWN-2/MTW
Voltage Rating600 V AC
Applications
For used in conduit and cable trays for services, feeders and branch circuit in commercial or industrial applications
Warranty
1 Year
Features
- Heat, moisture, gasoline and oil-resistant
- SIMpull technology for easier pulling
- THWN-2- Wet or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|REACH Compliant|ASTM B3, B8, B787|UL 83, 758, 1063, 1581|NOM Certified|ANCE Certified|Federal Specification A-A-59544|NEMA WC-70|NFPA 70
