Werner Hospital Grade MCAP Cable

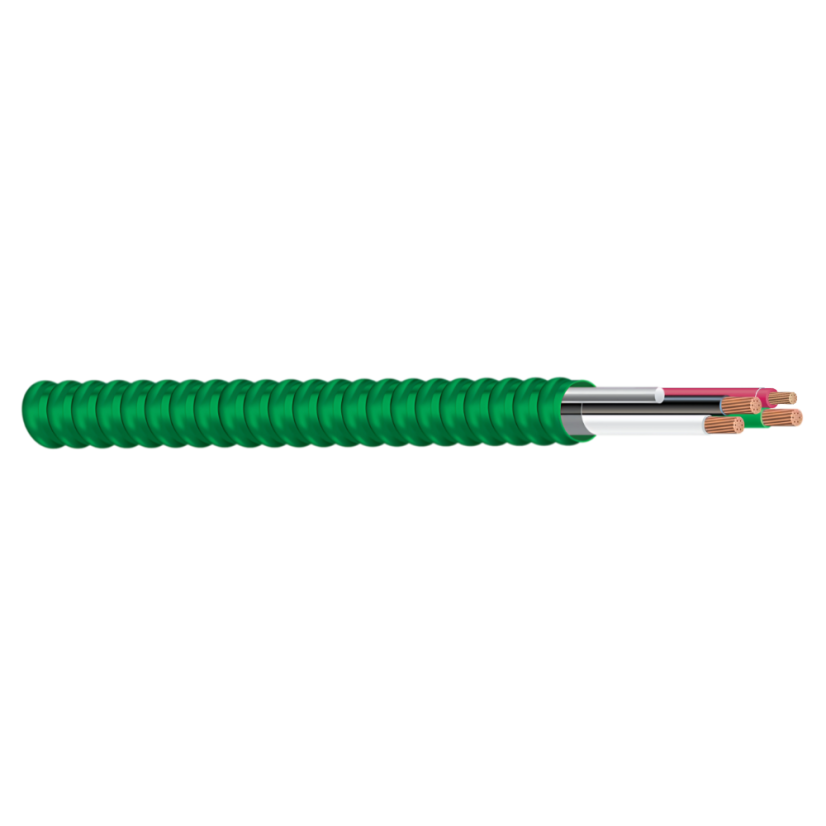

MCAP Cable - Stranded, Black/White/Red, 12/3, 250 Feet Spooled
Werner Hospital Grade MCAP Cable
MCAP Cable - Stranded, Black/White/Red, 12/3, 250 Feet SpooledIn Stock: 2250more info
|
BrandWerner
MFG #Hospital Grade MCAP Cable
Werner Part #4008003
UPC032886080890
In Stock: 2250more info
|
BrandWerner
MFG #Hospital Grade MCAP Cable
Werner Part #4008003
UPC032886080890
Product Description
Copper THHN Insulated Conductors. Full-Sized Aluminum Equipment Grounding/Bonding Conductor. UL Listed 600 Volt. Rated VW1. Lightweight Aluminum Interlocked Armor is Part of Equipment Bonding/Grounding Path. Branch, feeder and service power distribution in commercial, industrial, institutional, and multi- residential buildings. Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
Documents
Features
Specifications
Documents
Features
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 83 Thermoplastic Insulated Wires and Cables
- UL 1569 Metal-Clad Cables
- UL 1479 Standard for Safety Fire Tests of Penetration Firestops
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- RoHS-2 (European Directive 2011/65/EU)
- REACH - European Community Regulation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 83/1569/1063|NFPA 70|NEC Article 330|Federal Specification A-A59544 (formerly J-C-30B)|IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test|UL 1, 2, and 3 Hour Through-Penetration Firestop Systems|REACH Compliant
