Werner Hospital Grade MCAP Cable

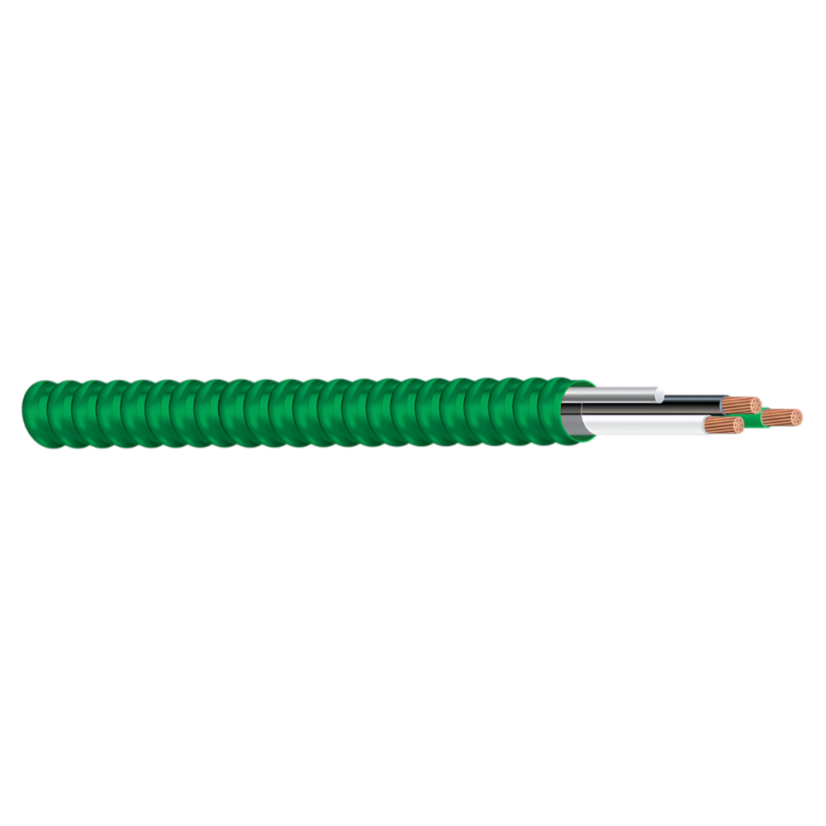

MCAP Cable - Stranded, Black/White, 12/2, 250 Feet Spooled
Werner Hospital Grade MCAP Cable
MCAP Cable - Stranded, Black/White, 12/2, 250 Feet SpooledIn Stock: 5750more info
|
BrandWerner
MFG #Hospital Grade MCAP Cable
Werner Part #2562544
UPC032886080128
In Stock: 5750more info
|
BrandWerner
MFG #Hospital Grade MCAP Cable
Werner Part #2562544
UPC032886080128
Product Description
Copper THHN Insulated Conductors. Full-Sized Aluminum Equipment Grounding/Bonding Conductor. UL Listed 600 Volt. Rated VW1. Lightweight Aluminum Interlocked Armor is Part of Equipment Bonding/Grounding Path. Branch, feeder and service power distribution in commercial, industrial, institutional, and multi- residential buildings. Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
Attributes
Documents
Features
Specifications
Attributes
Conductor size12 AWG
Conductor TypeStranded Copper
Country of OriginUnited States
Insulation MaterialPVC
Jacket ColorBlack/Green/White
Jacket MaterialAluminum
Number of Conductors2
Outside Diameter0.46899 in
ResistanceMoisture and Flame
Solid/StrandedStranded
Strands19
Temperature Rating90 deg C
TypeType MCHC/THHN
Voltage Rating600 V
Documents
Features
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 83 Thermoplastic Insulated Wires and Cables
- UL 1569 Metal-Clad Cables
- UL 1479 Standard for Safety Fire Tests of Penetration Firestops
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- RoHS-2 (European Directive 2011/65/EU)
- REACH - European Community Regulation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ASTM Specified|UL 83, 1581, 1063 (MTW)|CSA Certified|NOM-ANCE 90(D)C|Federal Specification A-A-59544, NEC NFPA 70
